MSU 300 Biomass Boiler

MSU 300 industrial biomass boiler — 300 kW for LTHW heating and wood-waste disposal.

Nominal output: 300 kW
joinery
panel processing
wood waste disposal

Gallery

Click any image to enlarge.

Ranheat MSU 300 biomass boiler installed inside a container-style housing alongside a conical fuel silo — Render of an MSU 300 boiler installed within a steel container-style enclosure, with a conical fuel silo behind and a stoker fuel-feed assembly to the side.

Ranheat MSU 300 300kW biomass boiler with a 16m3 B16 flat-bottom bunker silo arranged in a straight in-line layout — Render of an MSU 300 boiler fed in a straight in-line layout from a 16m3 B16 flat-bottom bunker silo, with stoker, expansion vessel and antifreeze loop.

Ranheat MSU 300 300kW biomass boiler working layout for Brown and Carroll with grit arrester and conical fuel silo — Working assembly render of the Brown and Carroll MSU 300 project, showing the 300kW boiler, fuel-handling pipework, grit arrester and a conical fuel silo set within the customer building envelope.

Close-up render of Ranheat MSU 300 biomass boiler with grit arrester and flue-gas ducting for Brown and Carroll — Close-up of the Brown and Carroll MSU 300 working assembly, focusing on the boiler, large-bore flue ducting and the grit arrester unit.

Ranheat MSU 300 300kW biomass boiler with a large flat-bottom bunker silo measuring approximately 4m x 3m x 2.5m — Render of an MSU 300 boiler fed from a large flat-bottom moving-floor bunker silo, approximately 4m x 3m x 2.5m, with stoker fuel feed and expansion vessel.

3D layout render of a Ranheat MSU 300 biomass energy centre for in , showing boiler, bunker silo, twin conical silos and cyclone — Full plant-layout render of the MSU 300 energy centre installation: an MSU 300 boiler with bunker silo, twin conical storage silos, cyclone and steelwork structure.

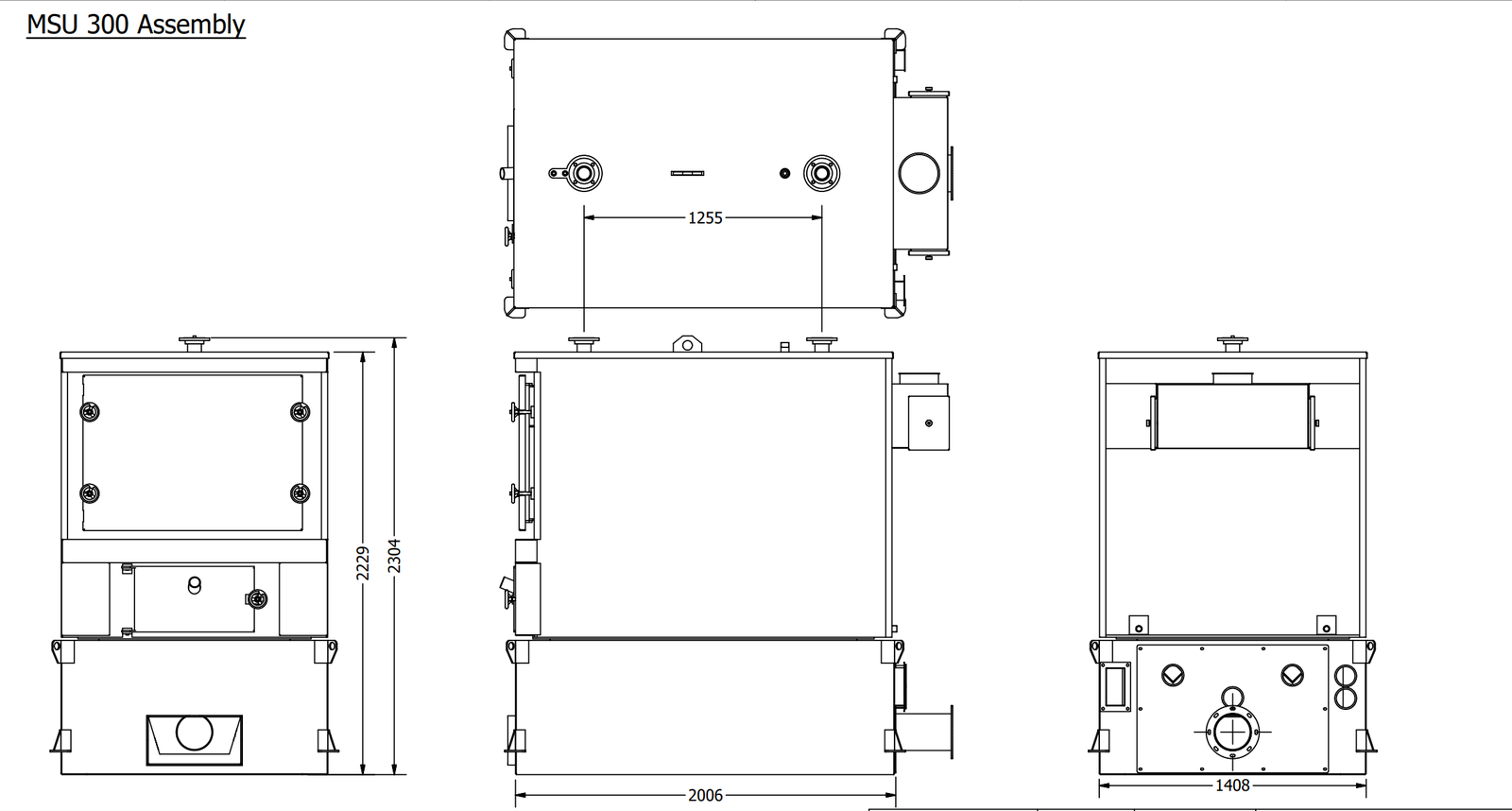

MSU 300 assembly general arrangement drawing with front, side, top and rear views and key dimensions — MSU 300 Assembly general arrangement drawing showing front, side, top and rear elevations with overall dimensions of 2006 x 1408 x 2304 mm.

Perspective cutaway render of a Ranheat MSU 300 horseshoe wet back biomass boiler showing fire tubes and retort — Perspective cutaway of the MSU 300 horseshoe wet back boiler, revealing the heat-exchanger fire tubes, water-filled wet back and the ceramic retort burner.

Perspective render of a Ranheat MSU 300 300kW biomass boiler with stoker feed and a bunker fuel silo — Hero perspective render of the MSU 300 300kW boiler, showing the multi-valve manifold top, stoker feed and an adjacent walking-floor bunker silo.

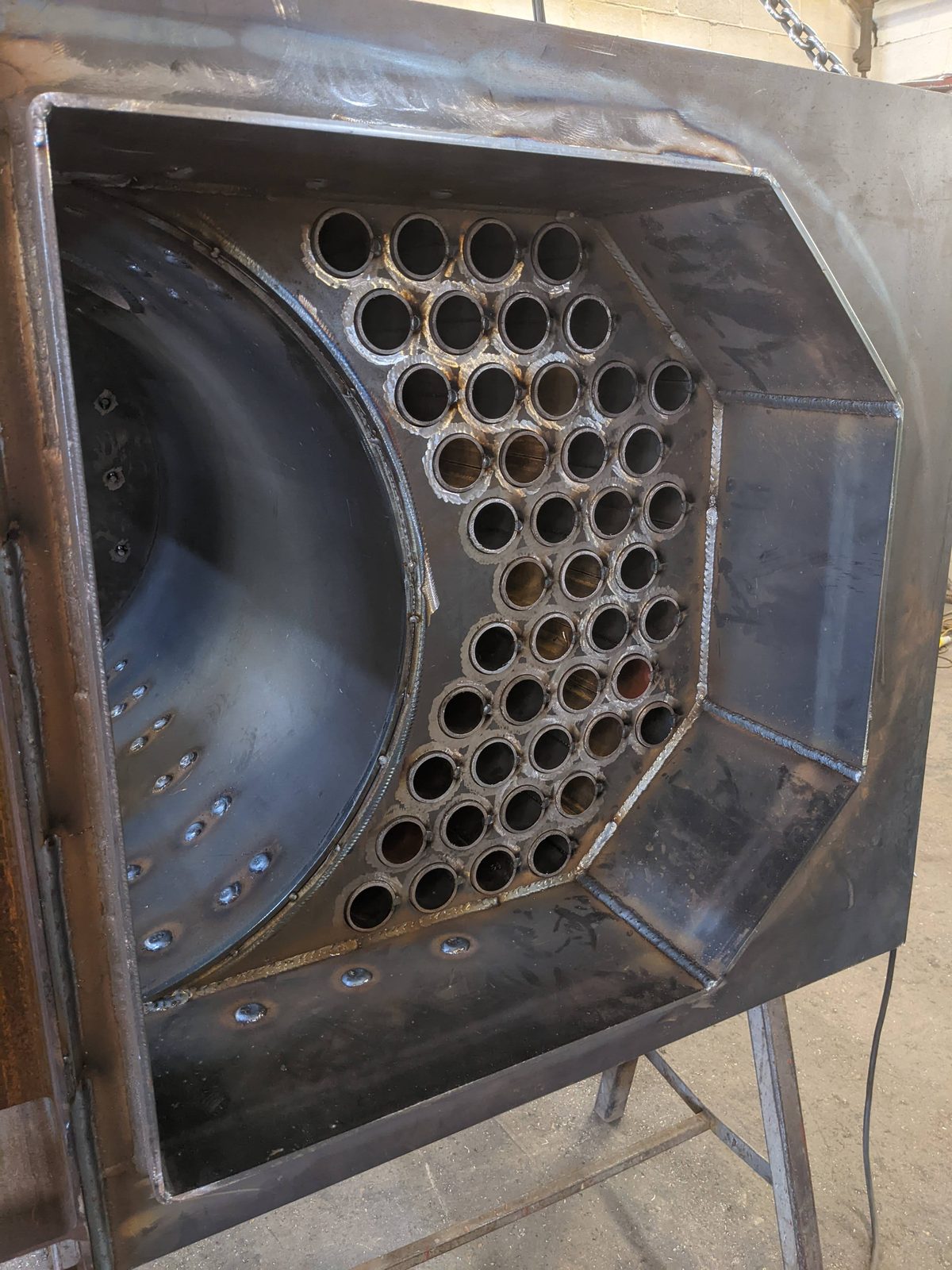

Factory photograph of a Ranheat MSU 300 biomass boiler near the end of production, showing the welded fire-tube plate and horseshoe combustion chamber — Factory floor photograph of an MSU 300 boiler nearing completion, showing the welded fire-tube plate and the horseshoe combustion chamber opening.

Top-down render of a Ranheat MSU 300 biomass boiler for the Adams project with ceramic filter, dissipator and conical fuel silo — Top-view plant render of the Adams MSU 300 layout, showing the boiler with a ceramic filter, a dissipator unit, conical fuel silo and pipework.

Cutaway render of a Ranheat MSU 300 installation for the Adams project showing ceramic filter pipework and ducting — Cutaway layout render of the Adams MSU 300 project, showing the boiler within its housing alongside a conical silo, ceramic filter, interconnecting pipework and flue ducting.

Summary

MSU 300 industrial biomass boiler — 300 kW for LTHW heating and wood-waste disposal.

Overview

Render of an MSU 300 boiler installed within a steel container-style enclosure, with a conical fuel silo behind and a stoker fuel-feed assembly to the side.

Best For

Joinery and panel-processing workshops
Industrial wood-waste disposal with heat recovery

Fuel And Combustion Notes

Compatible with wood, mdf, chipboard, shavings, offcuts. [TBD: combustion/grate detail]
