WA 300 warm air heater — 300 kW for industrial wood-waste heating and disposal.
Nominal output: 300 kW
panel processing
mdf
chipboard
Gallery
Click any image to enlarge.

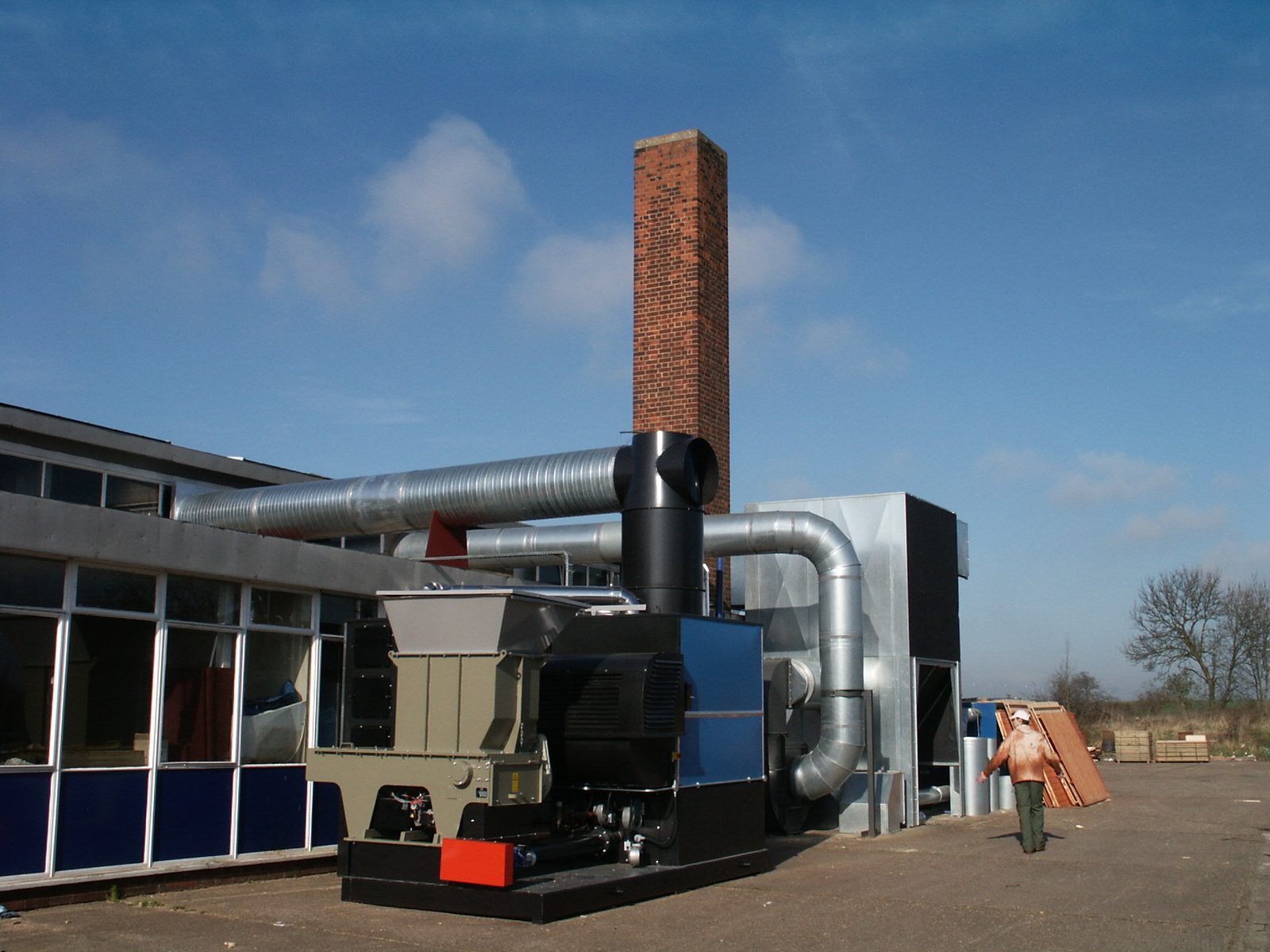

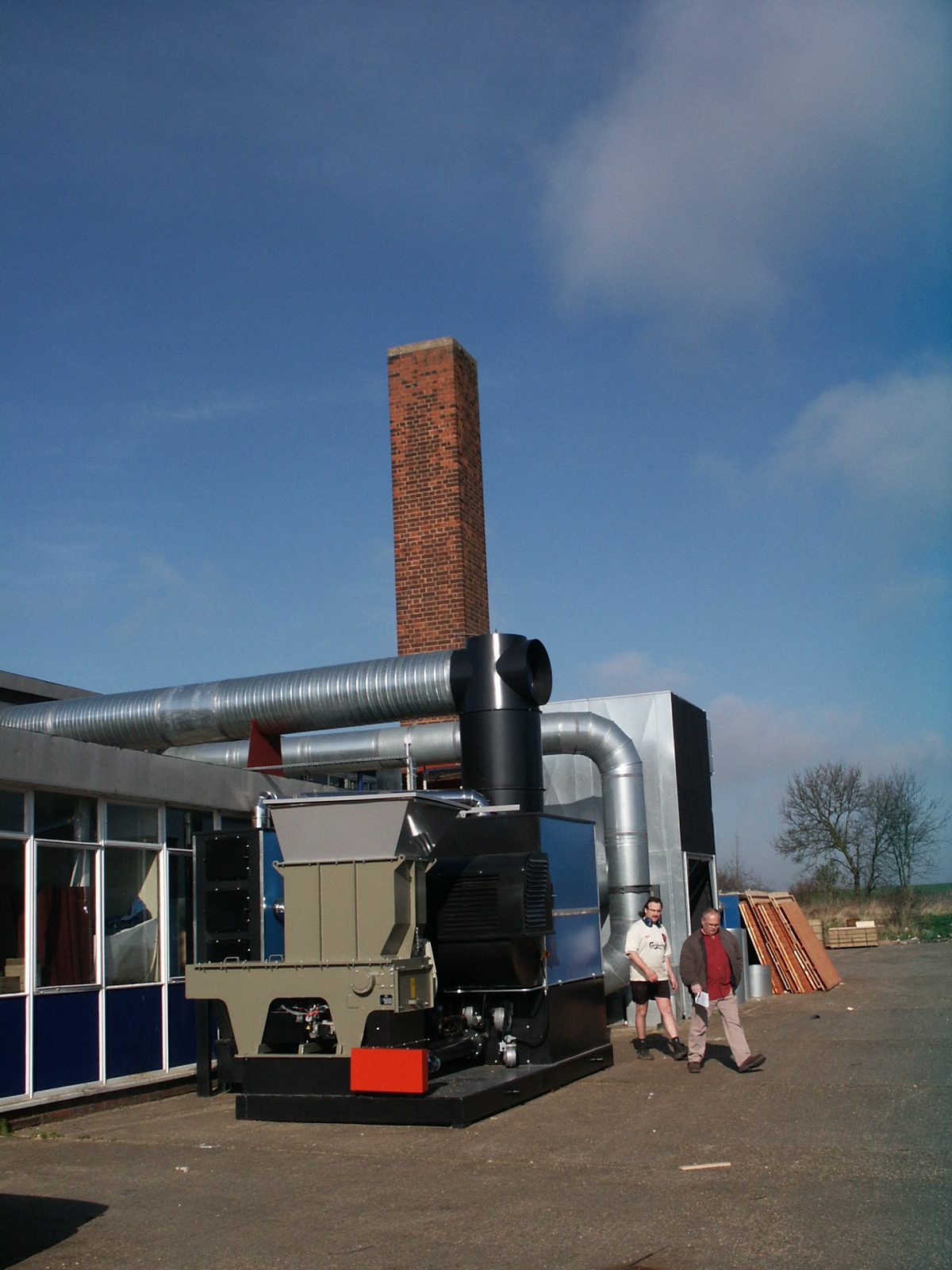

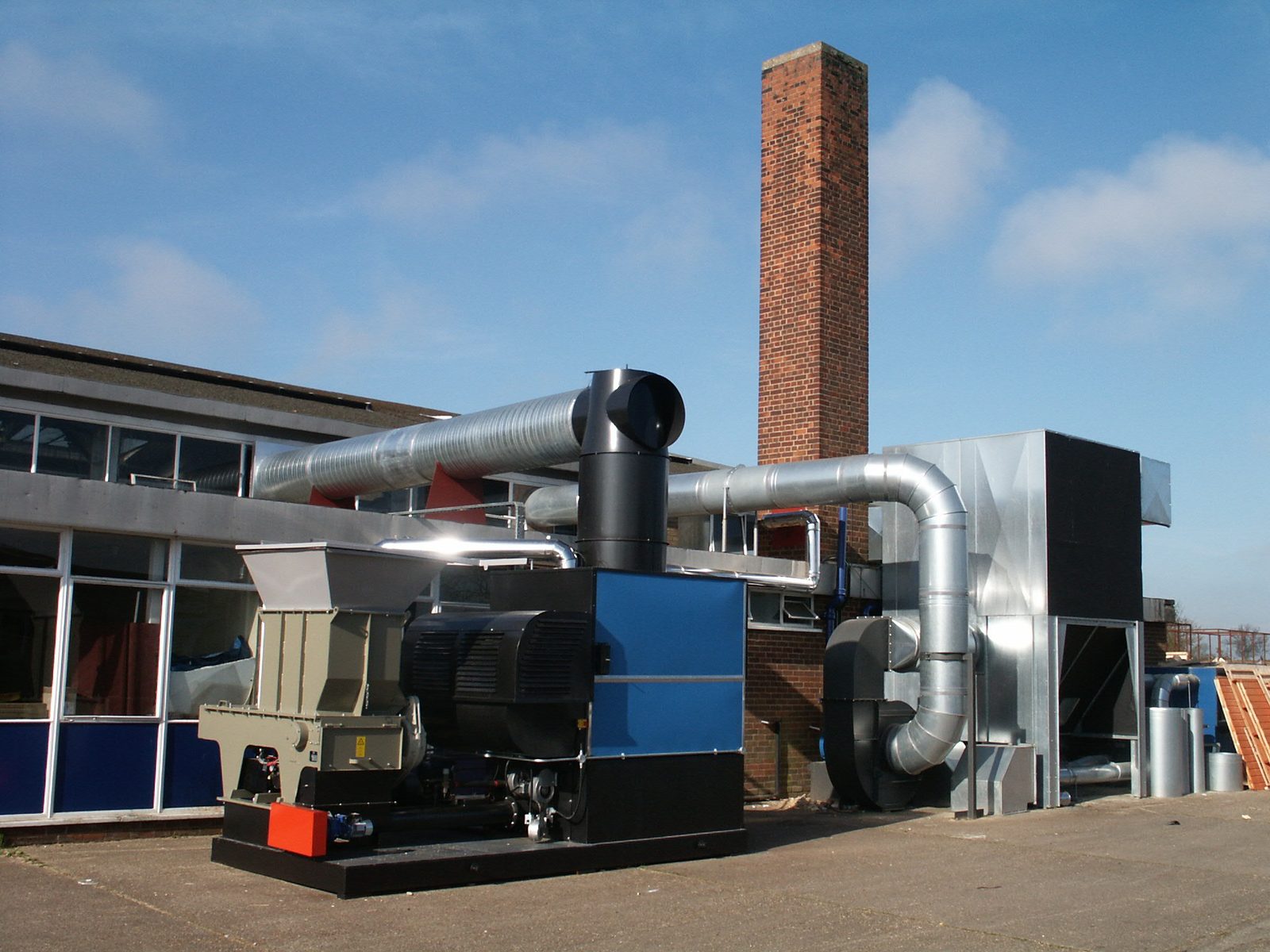

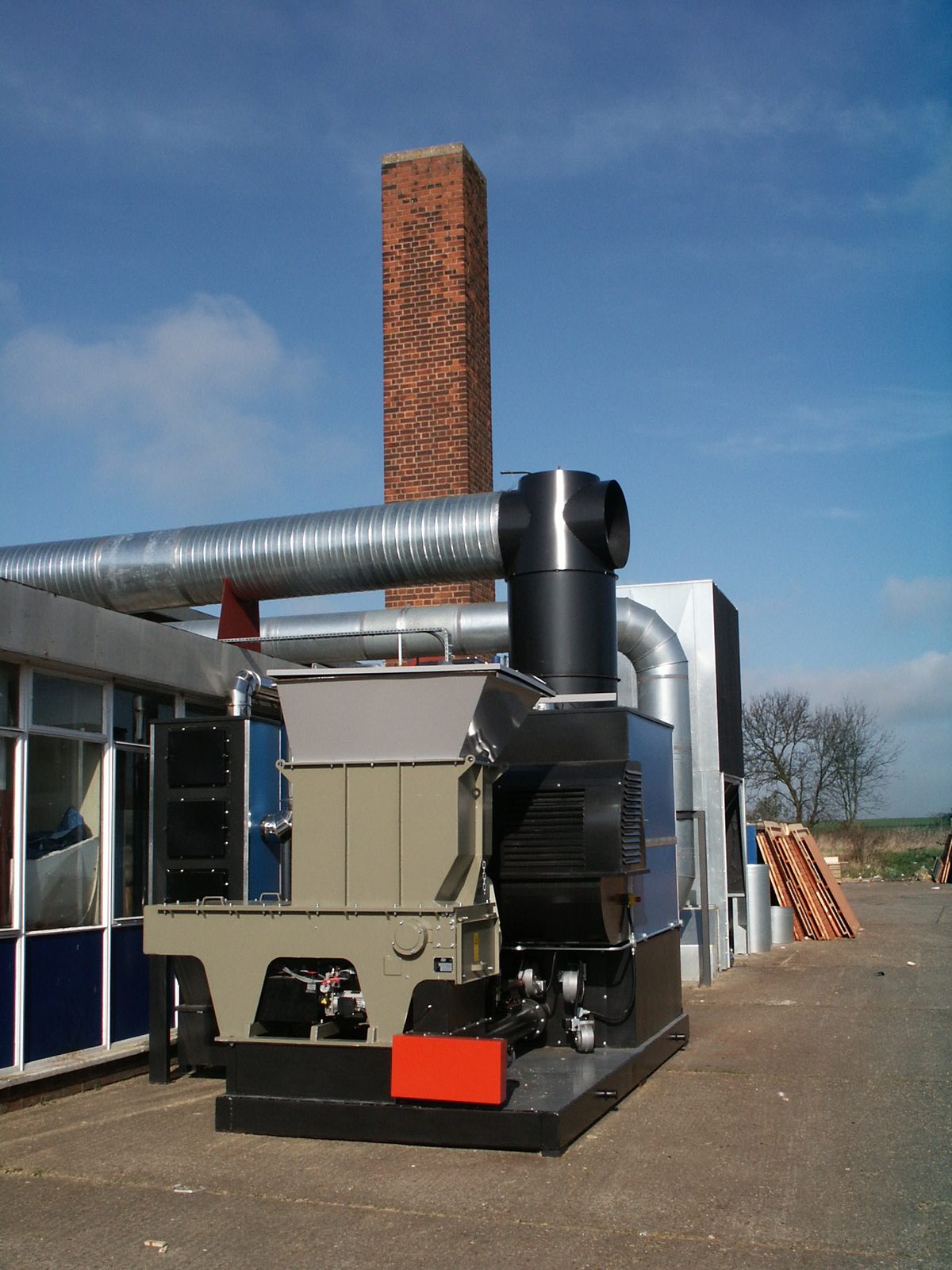

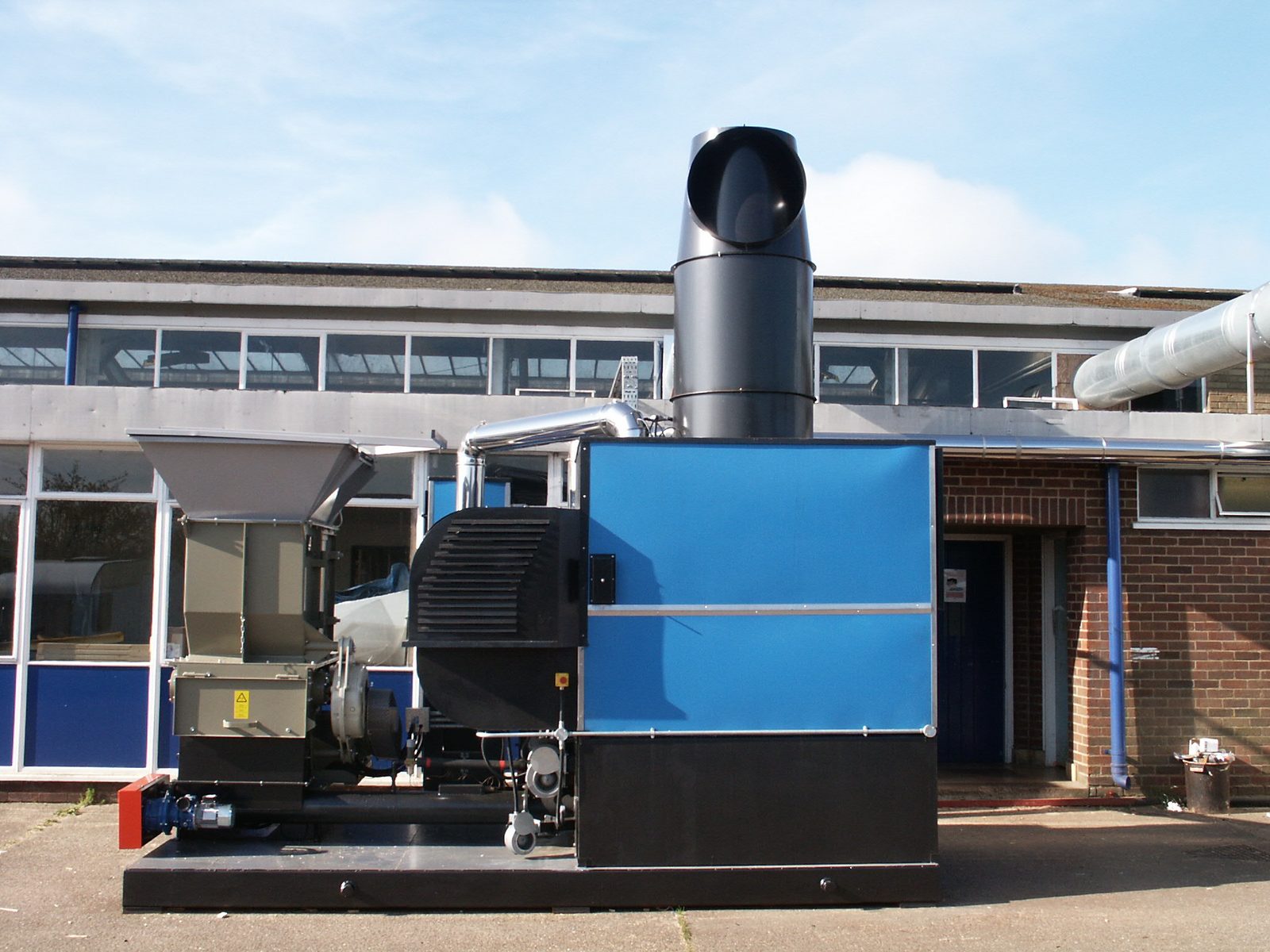

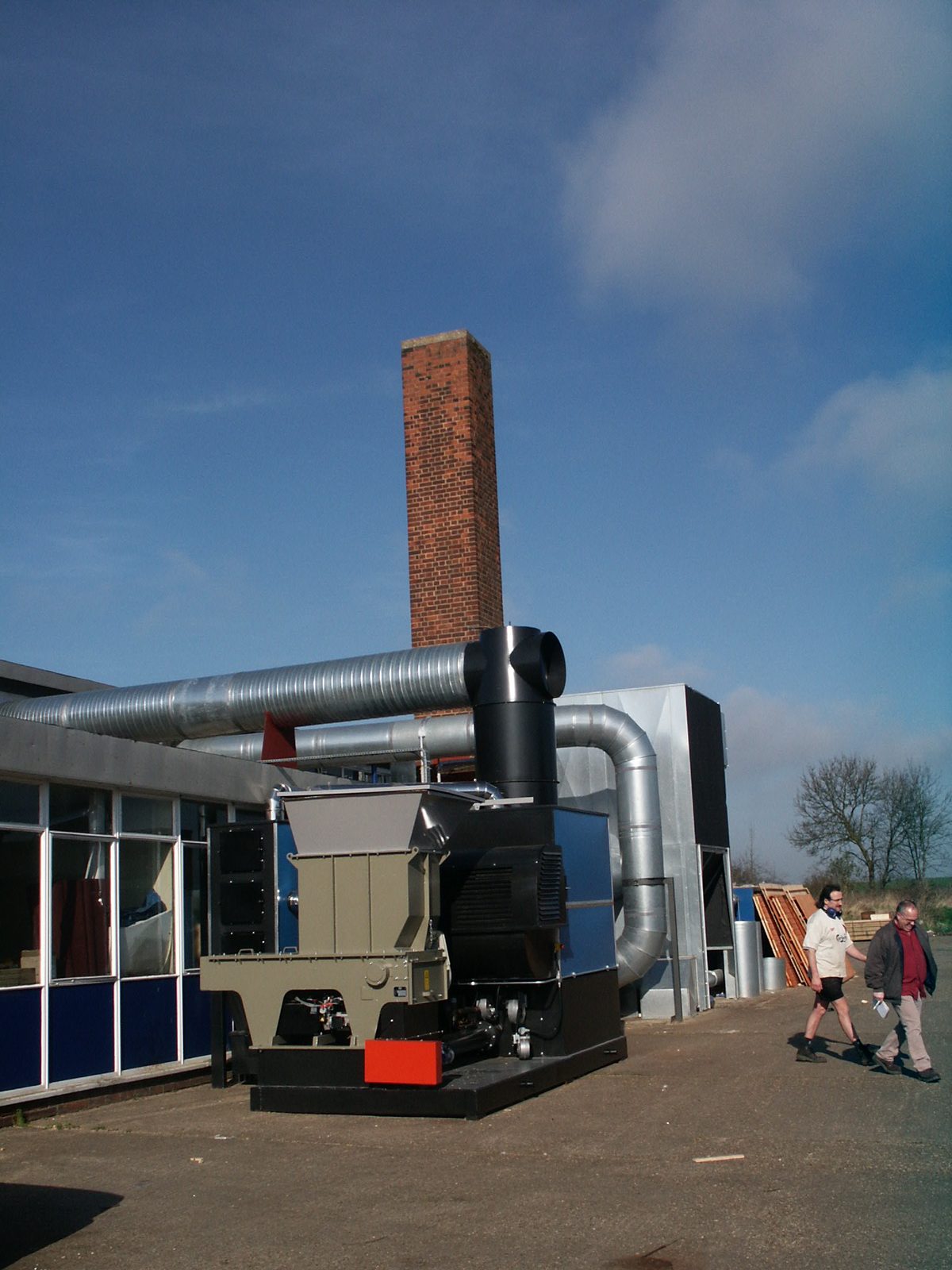

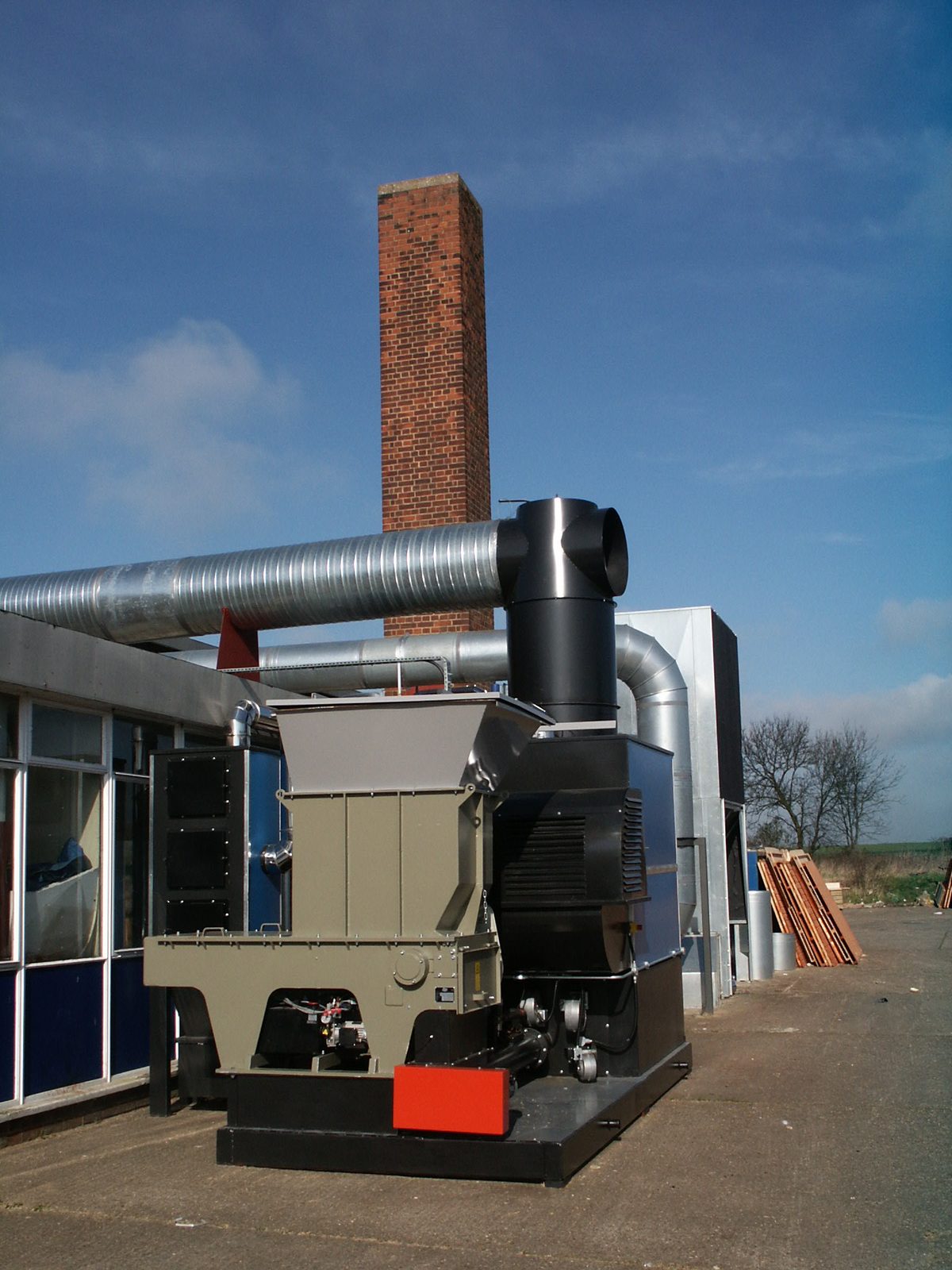

WA 300 warm air heater and C28 silo installation in a panel processing factory, fed by drag conveyor; dust extraction and chipper are visible.More front-on WA 300 warm air heater and C28 silo view in a panel processing factory, fed by drag conveyor; dust extraction is more clearly visible and a chipper is in the foreground.Wider perspective of the A&J Sectional Building installation, showing the WA 300 warm air heater, hogger loader, galvanised warm air ducting and the multi-cyclone dust collection unit to the right.The finished WA 300 hogger loader installation, with galvanised warm-air ducting routed into the building and the brick chimney serving the flue.The completed WA 300 hogger loader installation at A&J Sectional Building, with galvanised warm-air ducting running into the building and a tall brick flue chimney behind.Perspective view of the WA 300 warm air heater at A&J Sectional Building, with the large galvanised flue pipework arcing across to the multi-cyclone dust collection unit.Front elevation of the completed WA 300 warm air heater installation at A&J Sectional Building, with the hogger loader fuel unit and flue outlet clearly shown.Front view of the completed WA 300 hogger loader installation at A&J Sectional Building, showing the heater face, warm-air cowl and galvanised ducting.Front view of the installed Ranheat WA 300 warm air heater at A&J Sectional Building, with its grey hogger loader fuel-handling unit on the left and warm air ducting running back to the existing brick chimney.Site photograph of a Ranheat WA 300 warm air heater installed at Savvy Kitchens, housed in a steel-clad plant enclosure beside a flat-bottom B10 bunker silo and twin galvanised cyclones.WA 300 plant installed at Savvy Kitchens: heater inside a clad enclosure with a B10 bunker silo and twin galvanised cyclones outside.General arrangement render of a WA 300 warm air heater with a conical fuel silo, blue bag-loader on top and auger fuel feed to the heater.Perspective render of a WA 300 warm air heater paired with a 3m diameter, single-ring C28 conical fuel silo on a black steel support frame.Installed Ranheat ceramic filter on a WA 300 plant, with six top-mounted reverse-jet filter cells, a black manifold and twin firebox doors below.General plant assembly render: a WA 300 warm air heater with chimney and ductwork on the left and a flat-bottom B10 bunker silo on the right, shown inside a ghosted building shell.Straight-on side elevation render of a WA 300 plant: walking-floor bunker on the left feeding through a stoker to the heater, cyclone and chimney on the right.Front-view render of a WA 300 installation at Paneltech, with a compact c25-silo fuel store, hopper-topped enclosure and ghosted building steelwork.Side render of a WA 300 warm air heater in blue panel livery, fed by a 3m diameter, 2-ring C25 conical fuel silo with auger discharge.Side-view render of a WA 300 plant: heater with single cyclone and extraction fan on the left, fed by a 3m 2-ring C28 conical silo on the right.
Summary
WA 300 is a warm air heater in the WA range used for direct warm-air heating applications.
Installation Context
This model is commonly paired with storage and feed equipment where wood waste from panel-processing sites is available as fuel.
