M17 Biomass Boiler

M17 industrial biomass boiler — 1100 kW (also available as 980 kW) for LTHW heating and wood-waste disposal.

Nominal output: 1100 kW
joinery
panel processing
wood waste disposal

Gallery

Click any image to enlarge.

Ranheat M17 1100kW biomass boiler in a blue-clad building with three roof-mounted dissipators and a 4m 2-ring C50 conical silo — M17 energy centre: boiler housed in a blue-clad building with three heat dissipators on the roof, a 4m 2-ring C50 conical silo on the left, and the customer's process building behind.

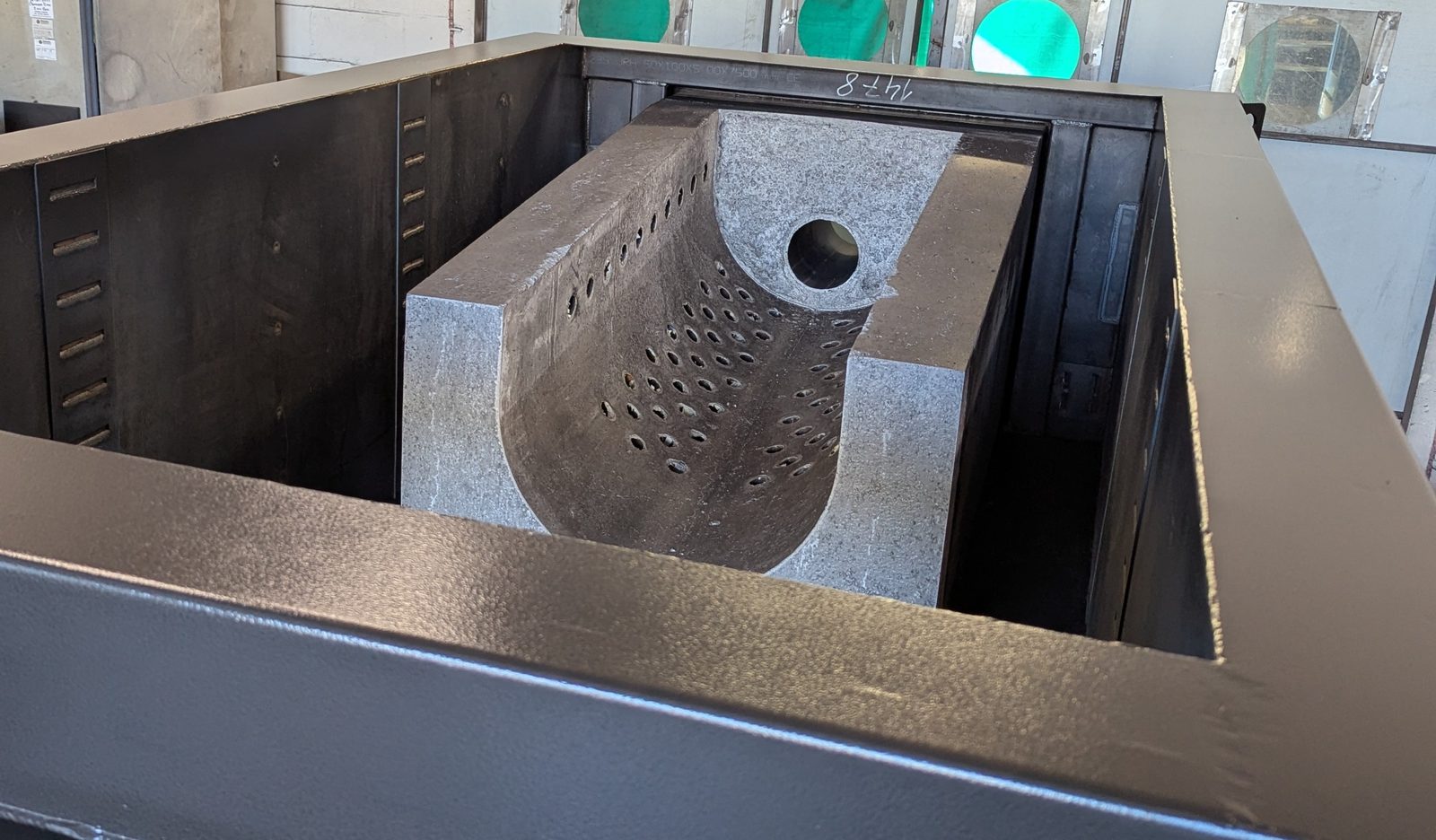

Factory photograph of the fixed retort grate fitted into the steel base of a Ranheat M17 biomass boiler before refractory base casting — Factory shot of an M17 fixed retort grate seated in the fabricated steel base, photographed before the surrounding refractory base is cast.

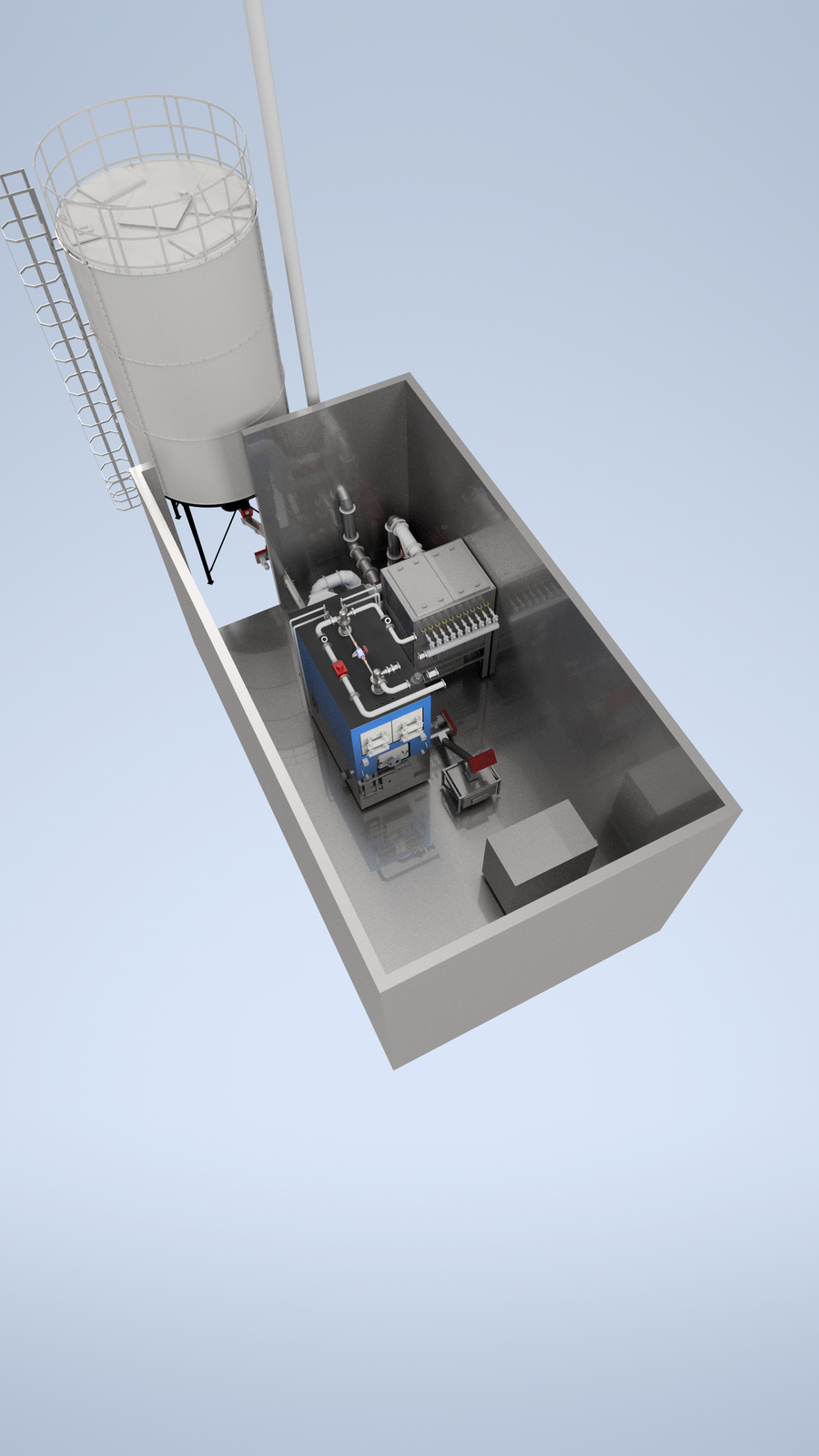

Top-down render of a Ranheat M17 1100kW biomass boiler installed in a plant room with an external conical fuel silo — Aerial cutaway view of an M17 energy centre: the boiler and fuel-handling pipework sit inside a walled plant room with an external conical fuel silo and access ladder to the left.

Close-up render of the rear of a Ranheat M17 biomass boiler showing the retort flange, transfer screws and fuel-handling pipework — Rear-corner render of the M17, showing the retort flange connection and the network of fuel-transfer screws and ducting feeding the boiler.

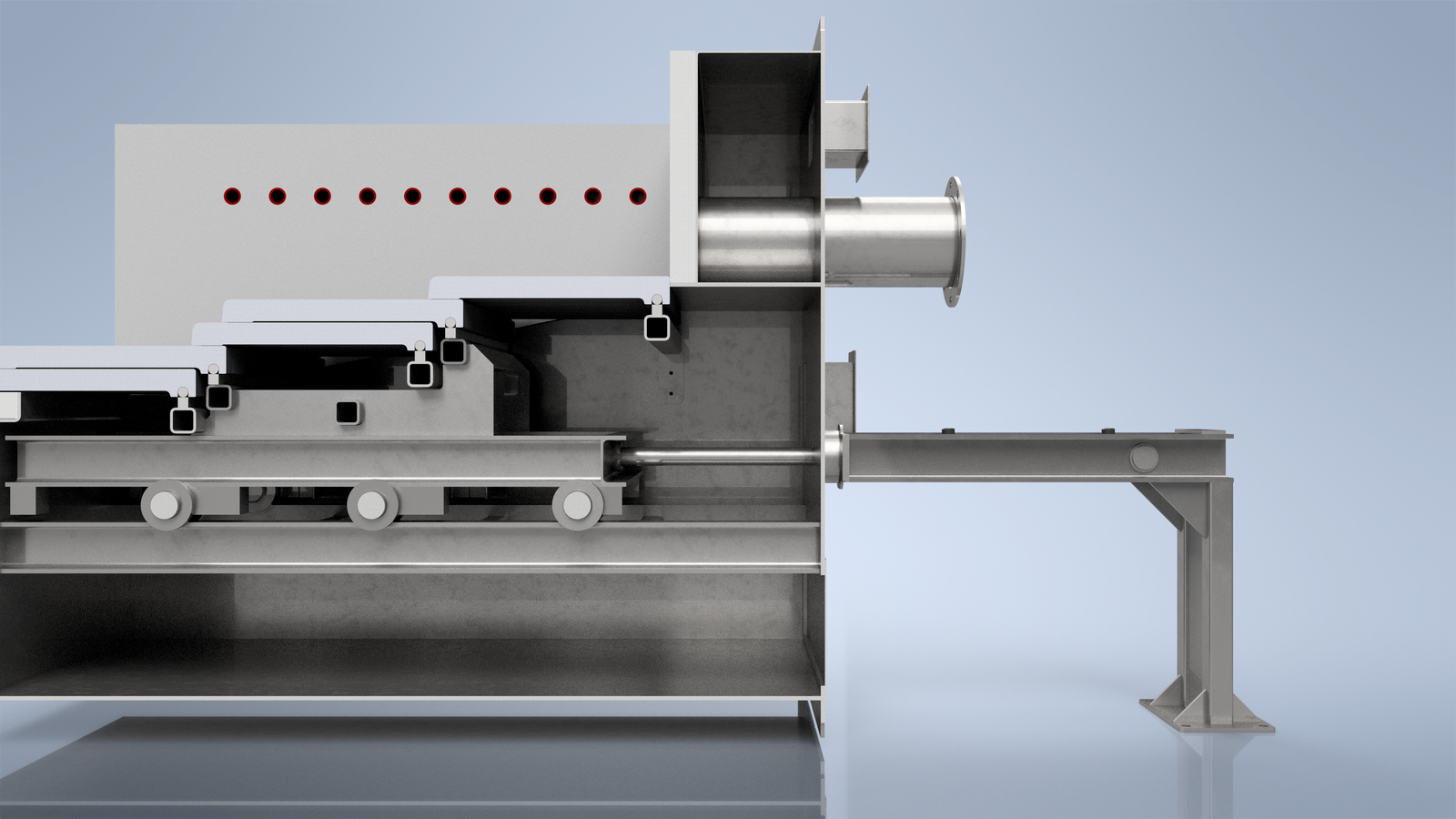

Side-on render of a Ranheat M17 reciprocating step grate retort with the hydraulic feed ram and support leg in focus — Dead-on side render of the M17 step grate retort, showing the stepped reciprocating grate, the fuel feed throat and the externally supported feed ram.

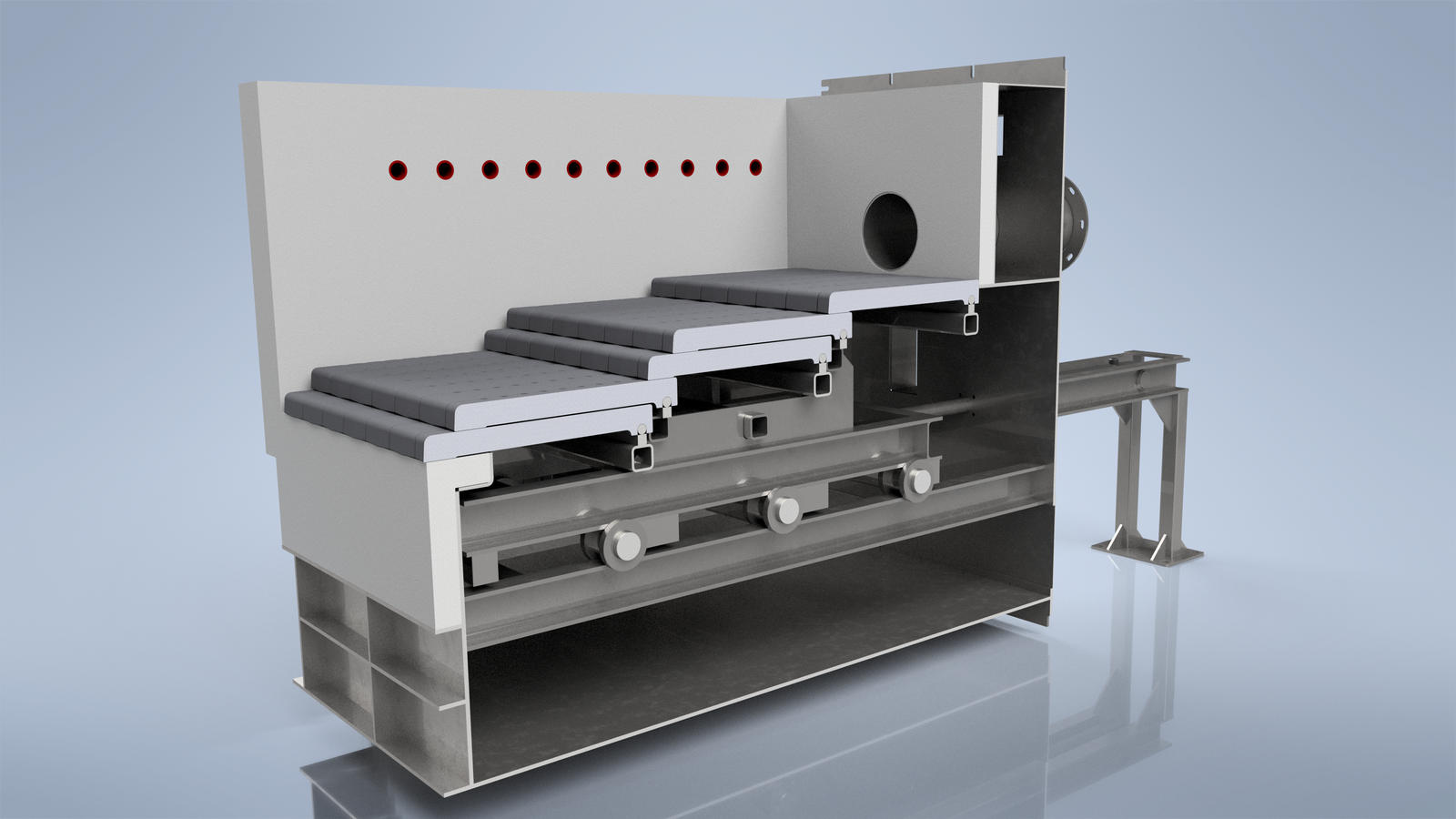

Cutaway render of a Ranheat M17 step grate retort revealing the reciprocating carriage and roller mechanism beneath the grate bars — Side cut-through render of the M17 step grate retort, exposing the stepped grate bars and the roller-mounted reciprocating carriage that drives them.

Summary

M17 industrial biomass boiler — 1100 kW (also available as 980 kW) for LTHW heating and wood-waste disposal.

Overview

M17 energy centre: boiler housed in a blue-clad building with three heat dissipators on the roof, a 4m 2-ring C50 conical silo on the left, and the customer's process building behind.

Best For

Joinery and panel-processing workshops
Industrial wood-waste disposal with heat recovery

Fuel And Combustion Notes

Compatible with wood, mdf, chipboard, shavings, offcuts. [TBD: combustion/grate detail]
