MSU Range Boiler

MSU 150 Biomass Boiler

MSU 150 industrial biomass boiler — 150 kW for LTHW heating and wood-waste disposal.

Nominal output: 150 kW
joinery
panel processing
wood waste disposal

Gallery

Click any image to enlarge.

Ranheat MSU 150 150kW wood waste LTHW boiler with 2m conical fuel silo, single cyclone and vertical screw feed — MSU 150 system layout: blue/black boiler on the left, single cyclone and fuel-handling pipework at centre, 2m blue-domed conical silo with vertical screw feed, and a green wood waste collection bin on the right.

Ranheat MSU 150 wood waste boiler with 2m conical silo, vertical screw conveyor and single cyclone — Closer perspective of the MSU 150 layout, emphasising the tall vertical screw conveyor that lifts wood waste from the collection bin into the 2m conical silo.

Ranheat MSU 150 wood waste boiler with a flat-bottom bunker silo and single cyclone — MSU 150 system with a flat-bottom bunker silo for compact workshop fuel storage, plus single cyclone dust extraction and overhead ducting.

3D render of a Ranheat MSU 150 wood waste LTHW boiler in cyan livery with white flow and return pipework and a multicyclone — Render of the MSU 150 LTHW boiler showing the white low-temperature hot water flow and return pipework and the multicyclone dust extraction.

Isometric view of Ranheat MSU 150 wood waste boiler with 2m conical silo, hogger loader bin and single cyclone — Layout A: high isometric view of the MSU 150 with a 2m conical silo, single cyclone and the green hogger loader bin that shreds and feeds offcuts into the system.

Ranheat MSU 150 150kW wood waste LTHW boiler unit shown on its own with the pressure vessel — Studio-style render of the MSU 150 boiler unit on its own, showing the welded pressure vessel inside the blue/black cladding.

Wide side-view render of a Ranheat MSU 150 150kW biomass boiler with a 3m diameter single-ring C14 conical fuel silo — Wide side-elevation render of an MSU 150 boiler fed from a 3m diameter, single-ring C14 conical fuel silo with cyclone and stoker.

Side view render of a Ranheat MSU 150 wood waste boiler with a 3m 1-ring C14 conical silo and single cyclone — Wide side-on view of the MSU 150 with a 3m 1-ring (C14) conical fuel silo, single cyclone and connecting flue.

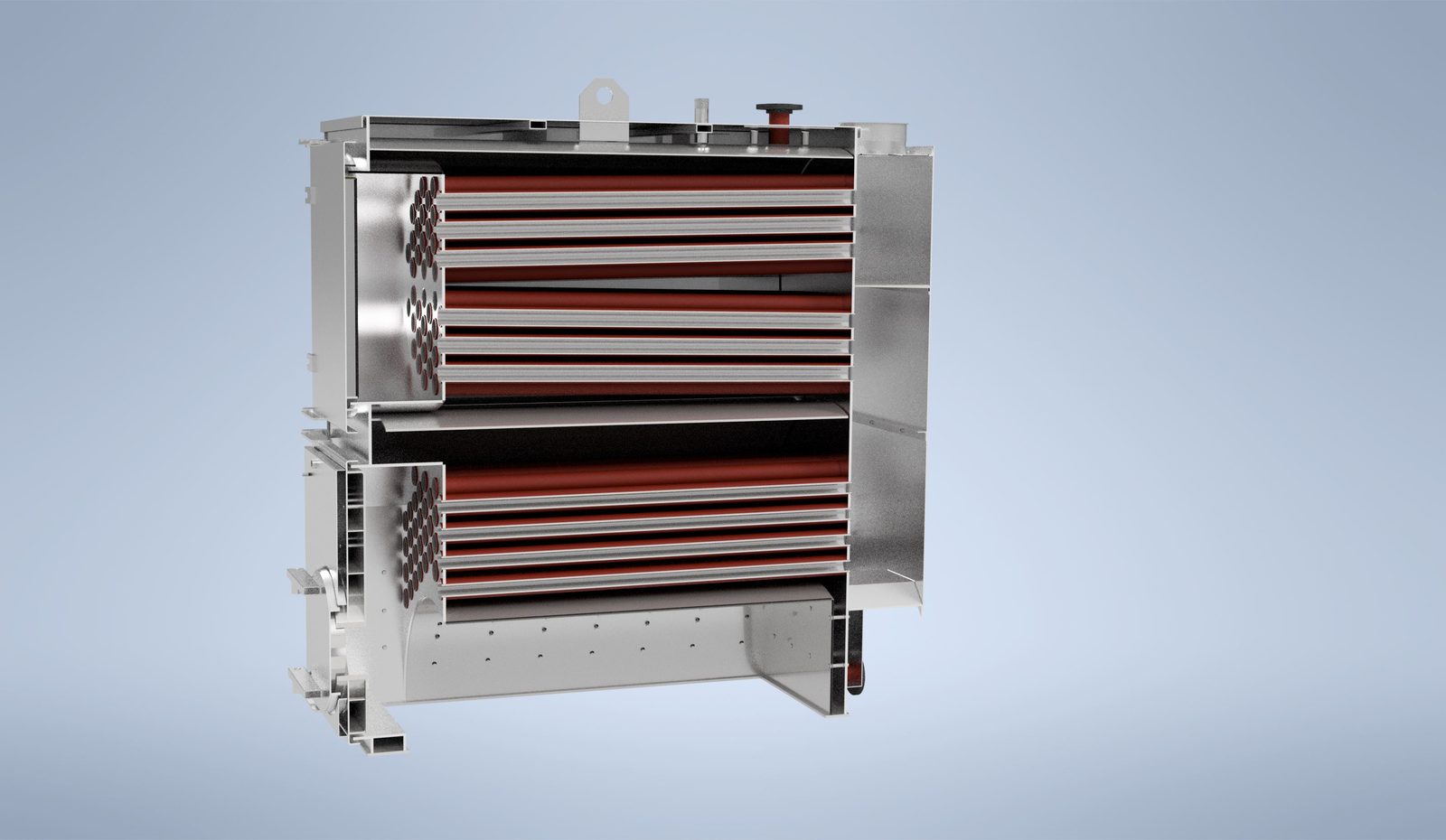

Cutaway render of a Ranheat MSU 150 wood waste boiler fitted with an economiser, uprated to 195kW — Cutaway of the MSU 150 boiler showing the internal fire-tube banks, with an economiser fitted to recover flue-gas heat and lift output to 195 kW.

Ranheat MSU 150 wood waste boiler with 3m 1-ring C14 conical silo and Modesta AFM100 ceramic filter dust extraction — MSU 150 layout assembly with a 3m 1-ring (C14) conical silo and a tall Modesta AFM100 ceramic filter unit for high-efficiency particulate extraction.

Summary

MSU 150 industrial biomass boiler — 150 kW for LTHW heating and wood-waste disposal.

Overview

MSU 150 system layout: blue/black boiler on the left, single cyclone and fuel-handling pipework at centre, 2m blue-domed conical silo with vertical screw feed, and a green wood waste collection bin on the right.

Best For

Joinery and panel-processing workshops
Industrial wood-waste disposal with heat recovery

Fuel And Combustion Notes

Compatible with wood, mdf, chipboard, shavings, offcuts. [TBD: combustion/grate detail]
