MSU 450 Biomass Boiler

MSU 450 industrial biomass boiler — 450 kW for LTHW heating and wood-waste disposal.

Nominal output: 450 kW
joinery
panel processing
wood waste disposal

Gallery

Click any image to enlarge.

Ranheat MSU 450 450kW wood waste LTHW boiler with chimney, expansion vessels and a 4m 2-ring C50 conical fuel silo — Perspective render of the MSU 450 energy plant: boiler with manifold pipework, control panel and red expansion vessels on the left, a 4m 2-ring C50 conical fuel silo on the right feeding the boiler via a stoker auger.

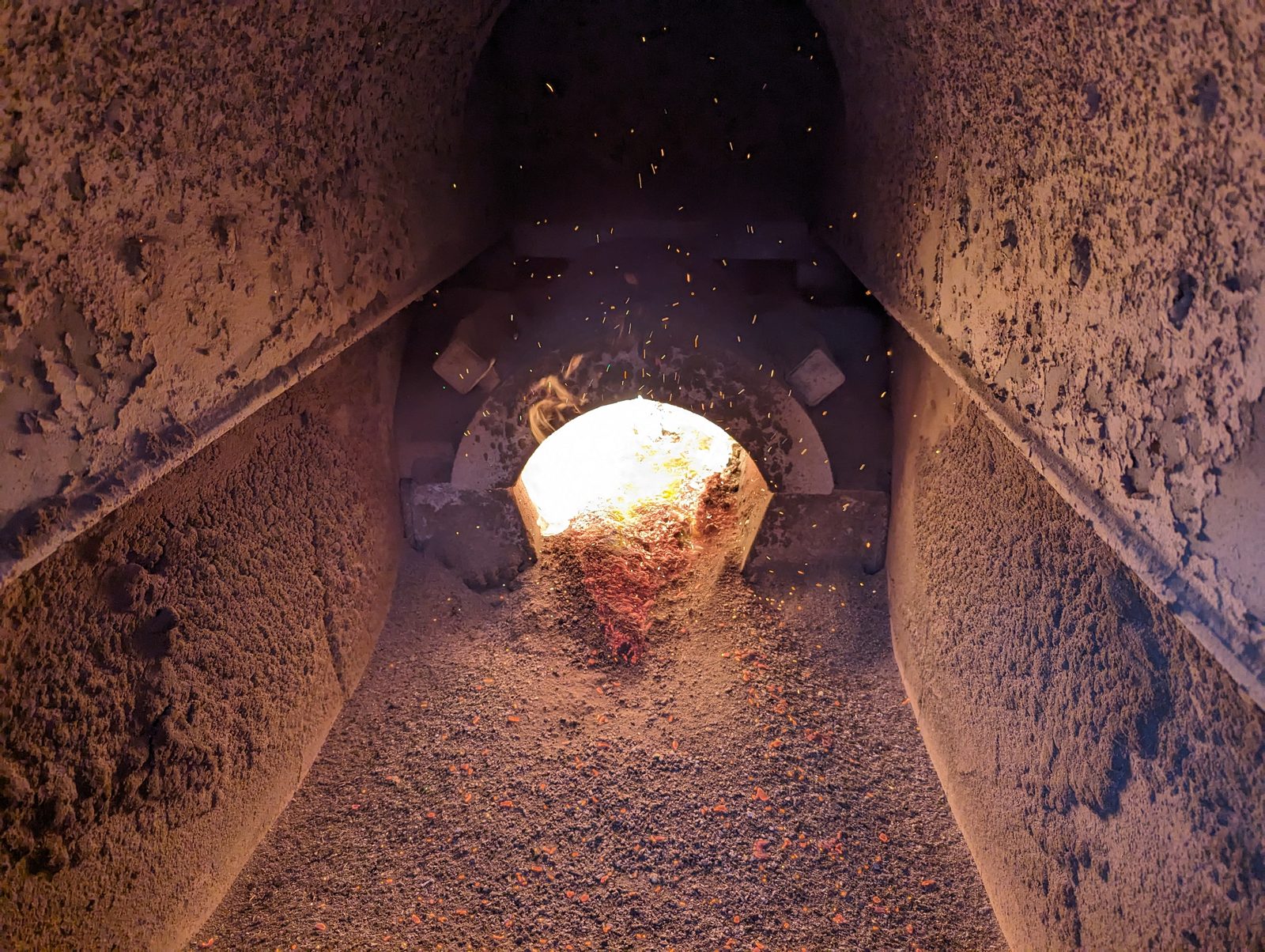

Site photograph looking into the combustion chamber of a Ranheat MSU 450 boiler showing a new fixed ceramic retort with a burning fuel bed — Real-world site photograph inside an MSU 450 combustion chamber, showing a newly fitted fixed ceramic retort with the wood fuel bed alight after ten years of service.

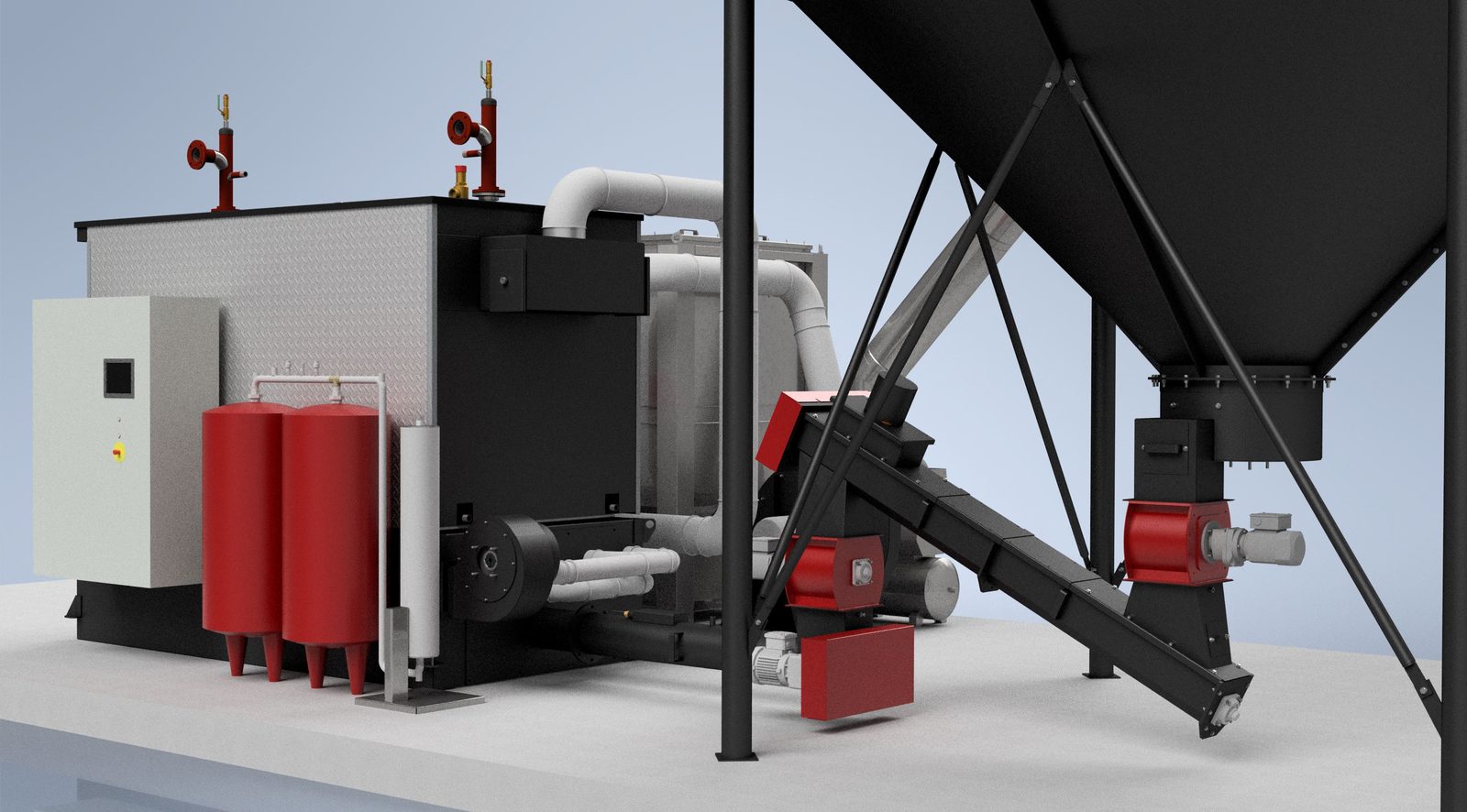

Rear view render of a Ranheat MSU 450 wood waste boiler and 4m 2-ring C50 conical silo showing the stoker feed — Close perspective from behind the silo looking toward the MSU 450 boiler, showing the cone discharge, inclined stoker auger and fuel transfer into the boiler.

Summary

MSU 450 industrial biomass boiler — 450 kW for LTHW heating and wood-waste disposal.

Overview

Perspective render of the MSU 450 energy plant: boiler with manifold pipework, control panel and red expansion vessels on the left, a 4m 2-ring C50 conical fuel silo on the right feeding the boiler via a stoker auger.

Best For

Joinery and panel-processing workshops
Industrial wood-waste disposal with heat recovery

Fuel And Combustion Notes

Compatible with wood, mdf, chipboard, shavings, offcuts. [TBD: combustion/grate detail]
