MSU Range Boiler

MSU 600 Biomass Boiler

MSU 600 industrial biomass boiler — 600 kW for LTHW heating and wood-waste disposal.

Nominal output: 600 kW
joinery
panel processing
wood waste disposal

Gallery

Click any image to enlarge.

Ranheat MSU 600 600kW wood waste LTHW boiler with ceramic filter dust extraction and 4m 2-ring C50 conical fuel silo — General assembly render of the MSU 600 energy centre: boiler with ceramic filter on a steel base plinth, fed from a 4m 2-ring C50 conical silo via screw conveyor and rotary valve.

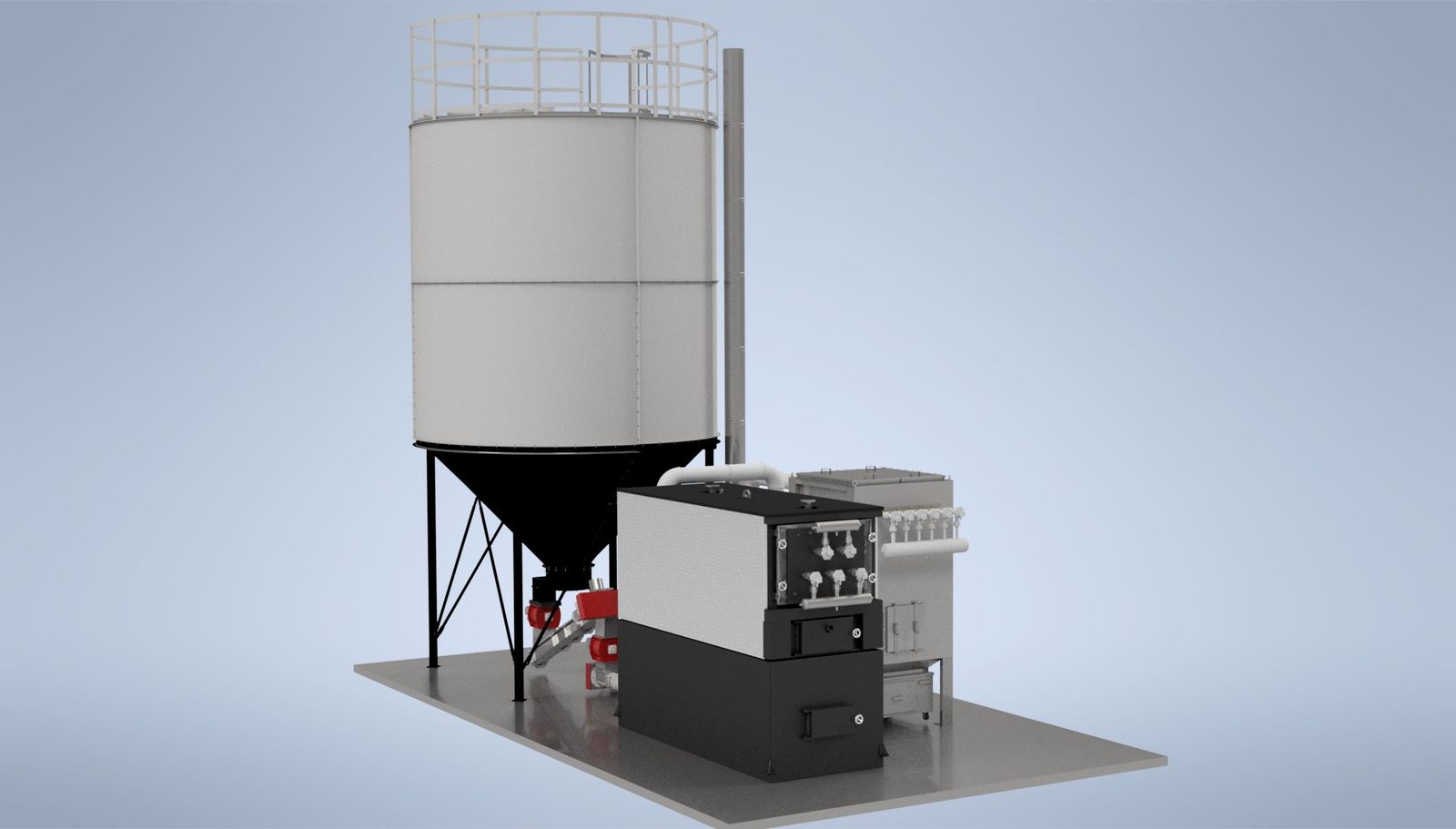

Wide perspective render of a Ranheat MSU 600 wood waste boiler, ceramic filter and 4m 2-ring C50 conical fuel silo — Wide perspective render of the MSU 600 energy centre: 4m 2-ring C50 conical silo on the left feeding the boiler and ceramic filter on the right.

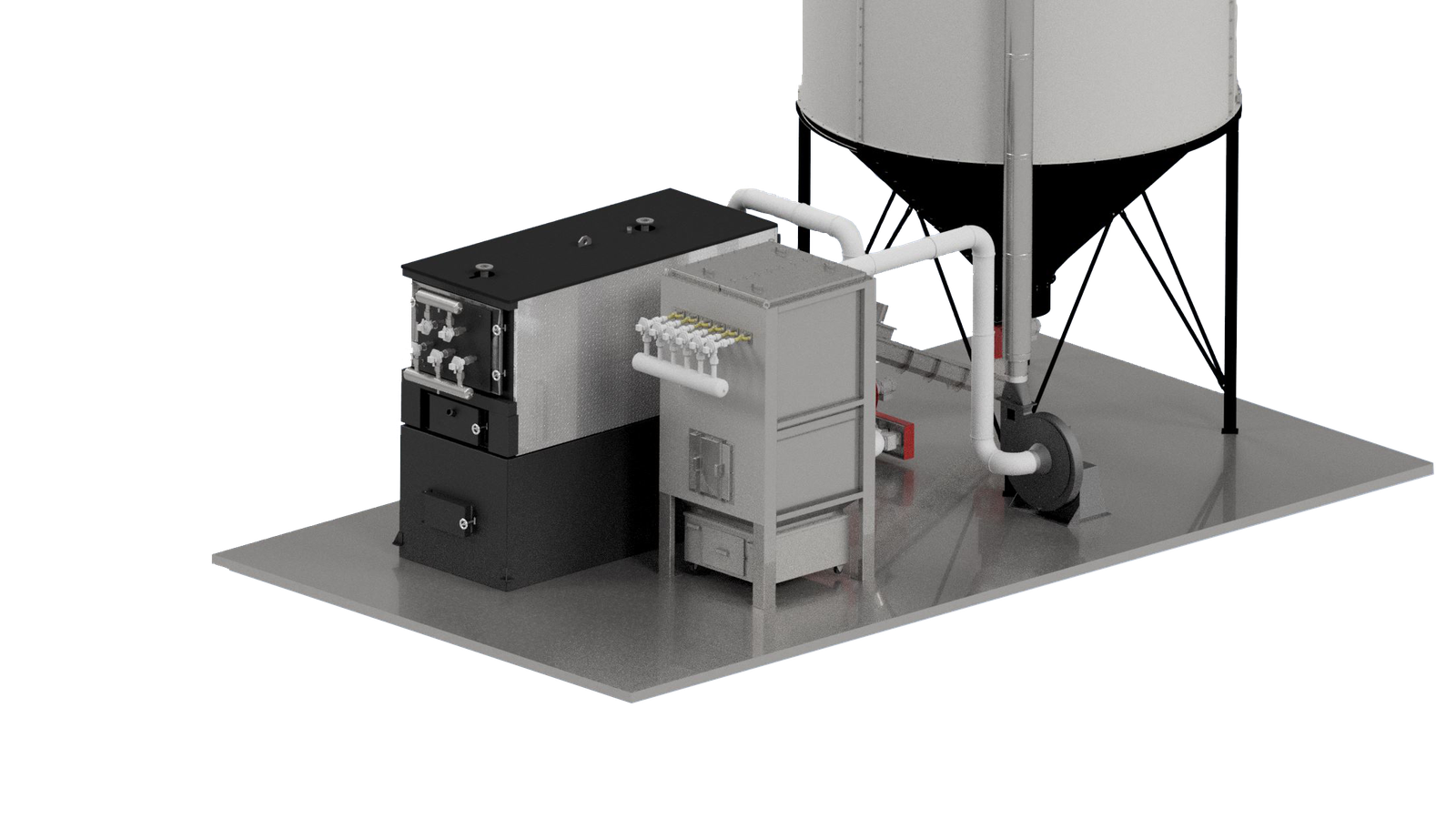

Cut-out render of a Ranheat MSU 600 wood waste boiler with ceramic filter and 4m 2-ring C50 conical silo on a transparent background — Transparent-background cut-out of the MSU 600 energy centre, ready for placing onto brochures, web pages and layouts.

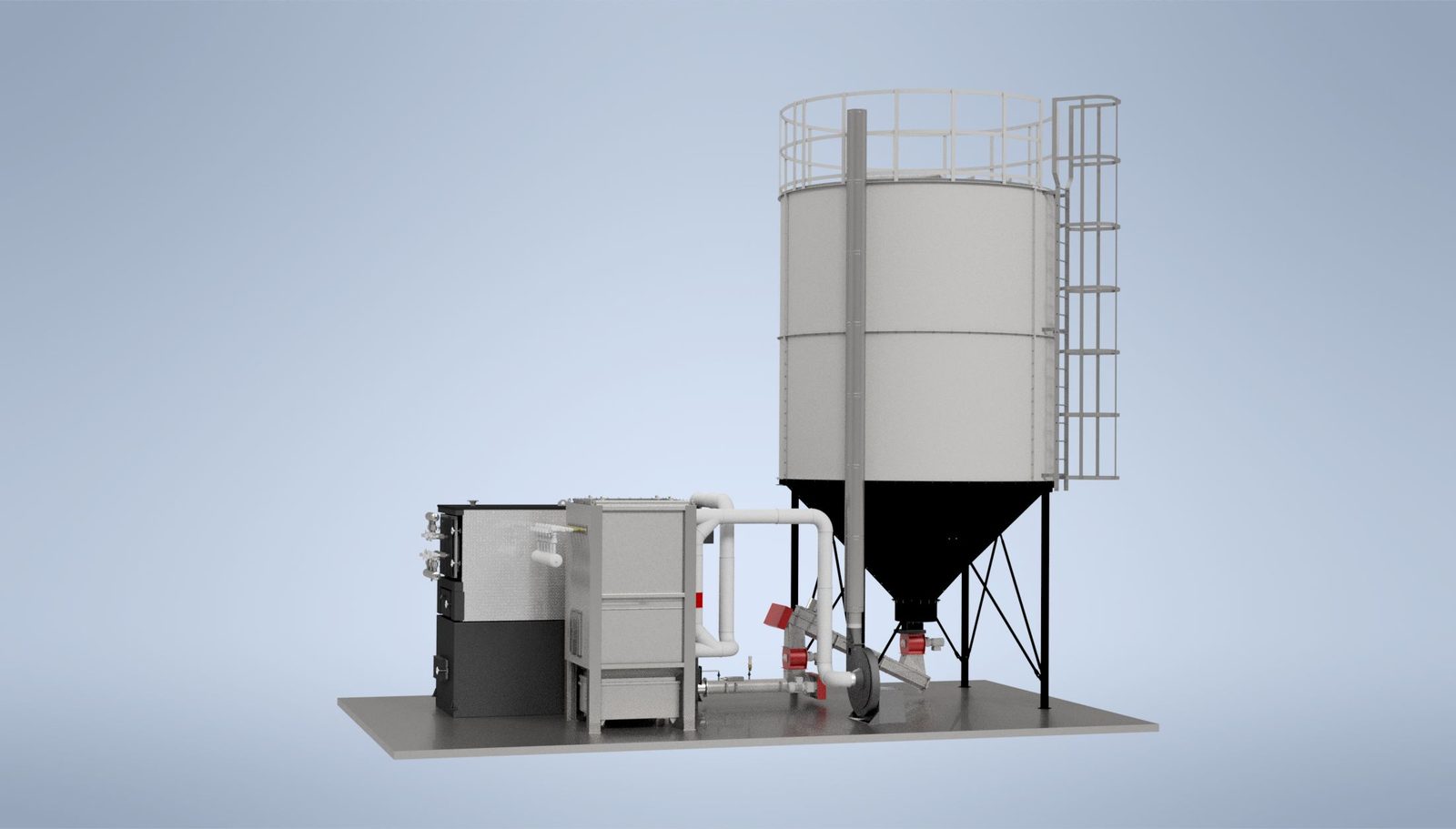

Side view render of a Ranheat MSU 600 wood waste boiler, ceramic filter and 4m 2-ring C50 conical fuel silo — Side elevation of the MSU 600 energy centre, showing the boiler, ceramic filter and the 4m 2-ring C50 conical silo with its support legs and access ladder.

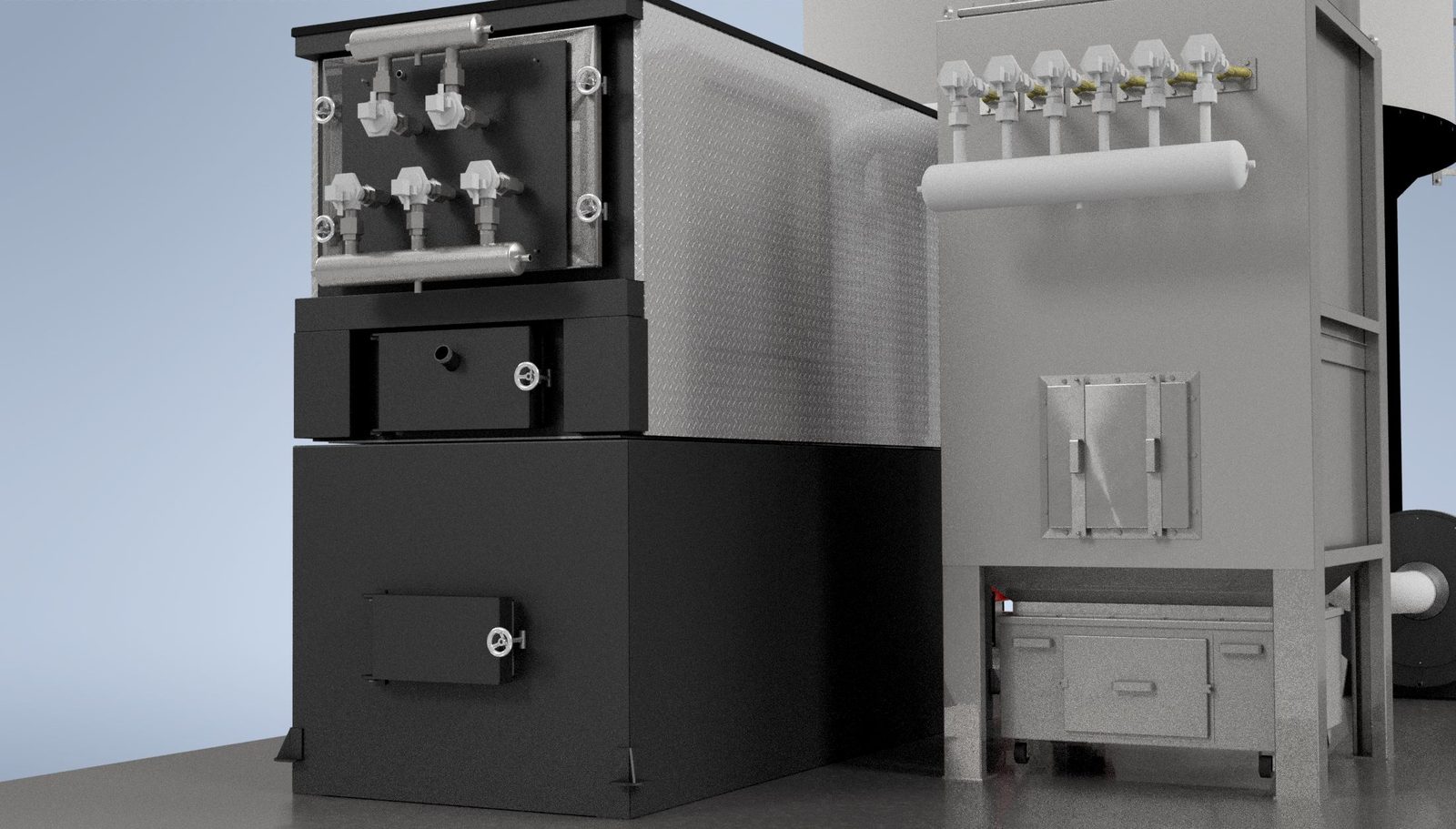

Close-up front render of a Ranheat MSU 600 wood waste boiler and its ceramic filter dust extraction housing — Tight frontal view of the MSU 600 boiler with its inspection doors and the adjacent ceramic filter housing with discharge augers and ash drawer.

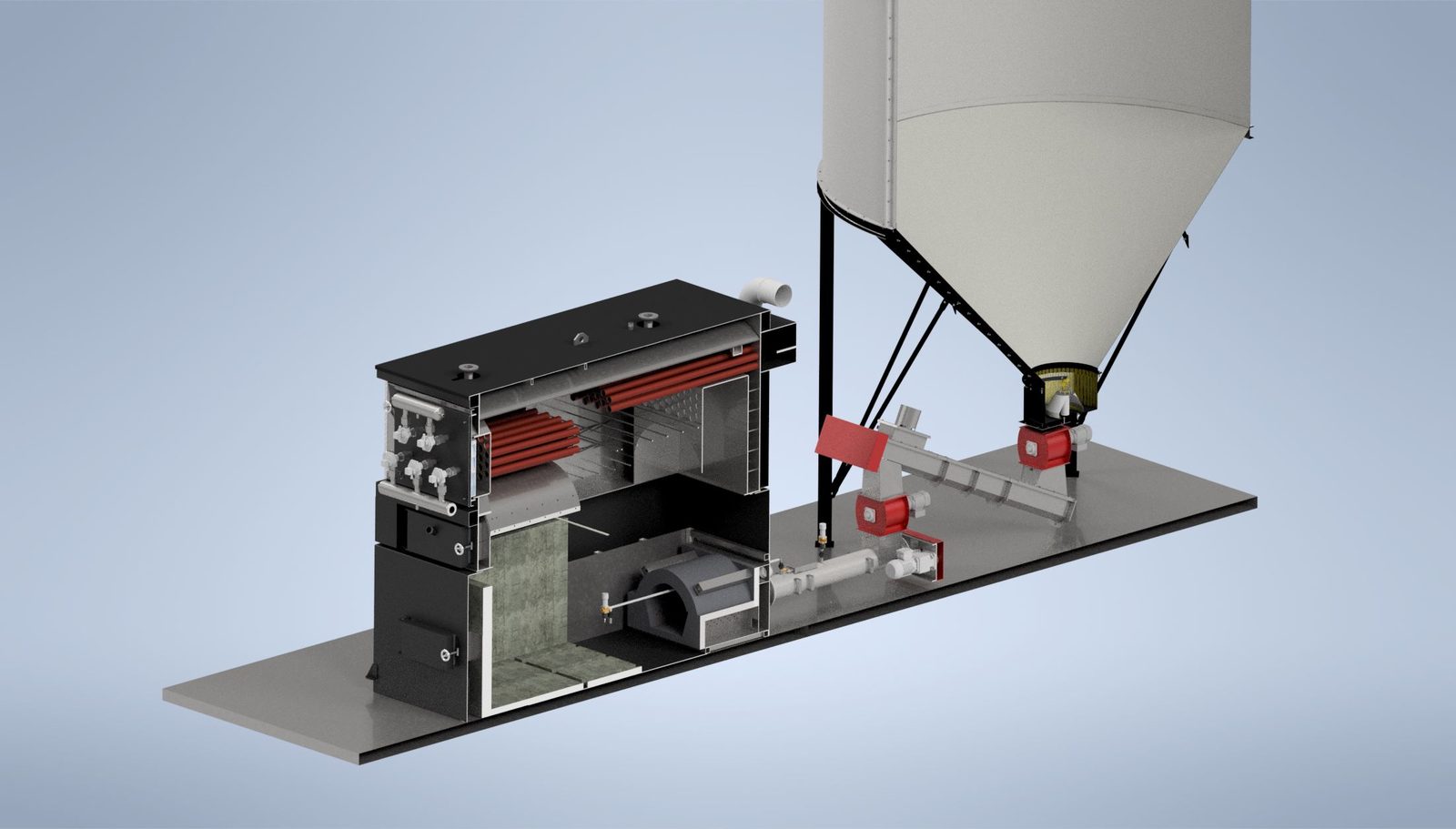

Cutaway render of a Ranheat MSU 600 wood waste boiler showing the combustion chamber, shell-and-tube heat exchanger and silo fuel feed — Cutaway view of the MSU 600 revealing the refractory-lined combustion chamber, horizontal fire-tube heat exchanger and the screw-fed fuel path from the conical silo.

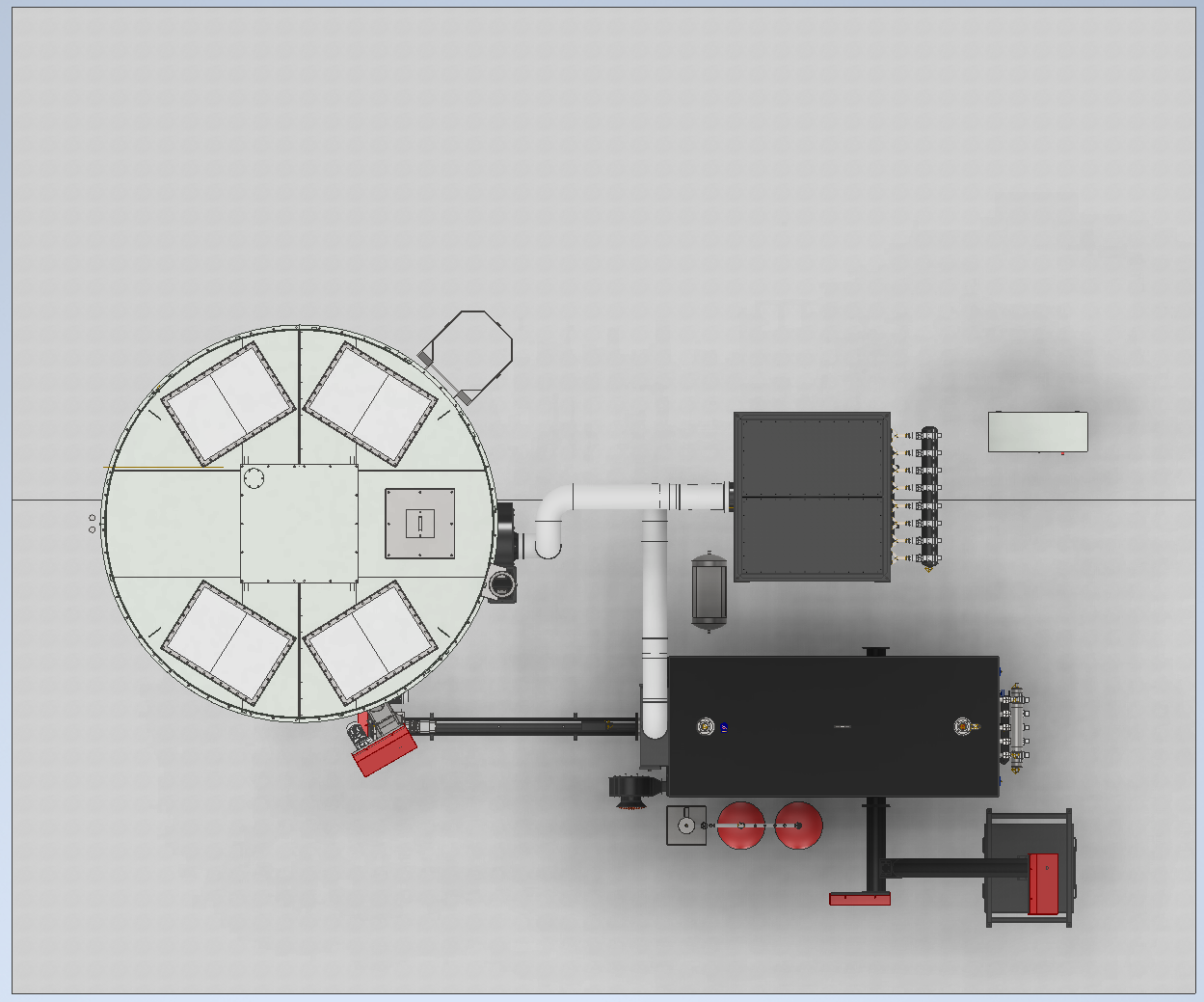

Top-down plan view render of a Ranheat MSU 600 wood waste boiler, multi-cyclone and conical fuel silo layout for a kitchen manufacturer — Top-down plan view of the Ranheat MSU 600 kitchen-manufacturer installation, showing the footprint and spatial relationship of the conical silo, boiler unit and multi-cyclone bank.

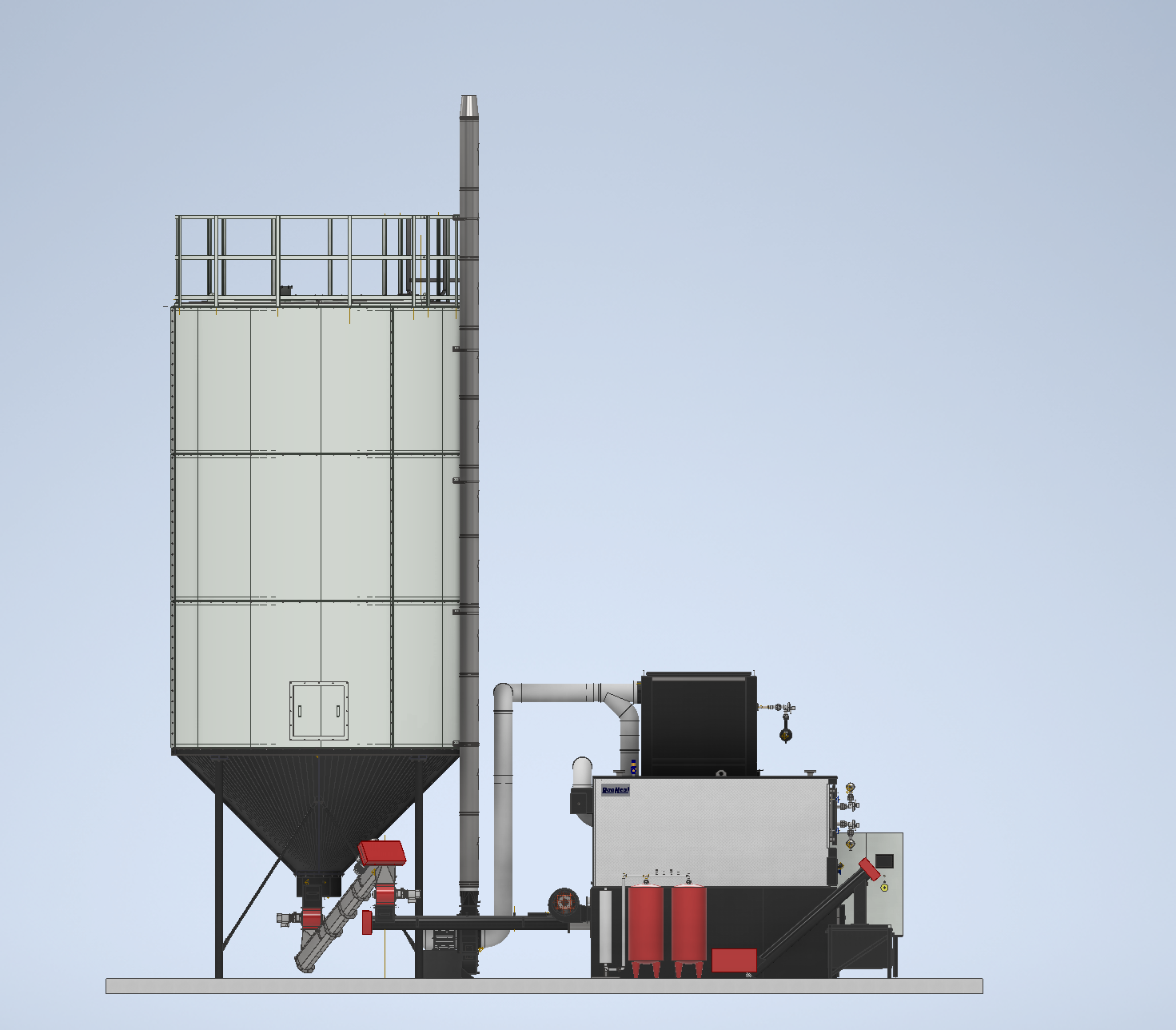

Side elevation render of a Ranheat MSU 600 wood waste boiler with multi-cyclone and tall conical fuel silo for a kitchen manufacturer — Side elevation of the Ranheat MSU 600 kitchen-manufacturer installation, showing the full height of the conical silo alongside the boiler unit, multi-cyclone bank and stack.

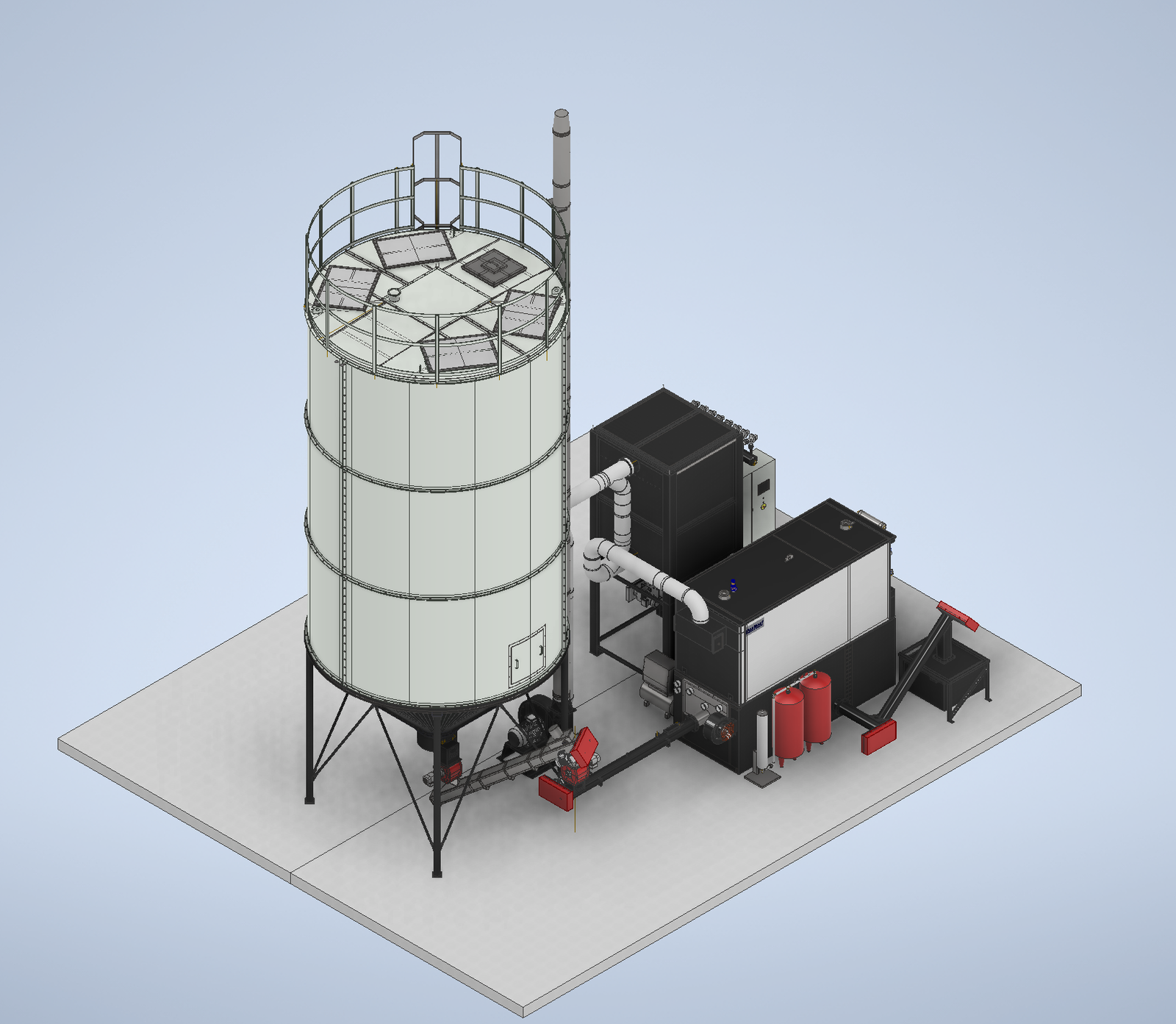

3D isometric render of a Ranheat MSU 600 wood waste boiler and conical fuel silo for a kitchen manufacturer, viewed from the silo side — Alternative isometric angle of the Ranheat MSU 600 kitchen-manufacturer installation, showing the conical silo, boiler unit, multi-cyclone bank and interconnecting flue ducting.

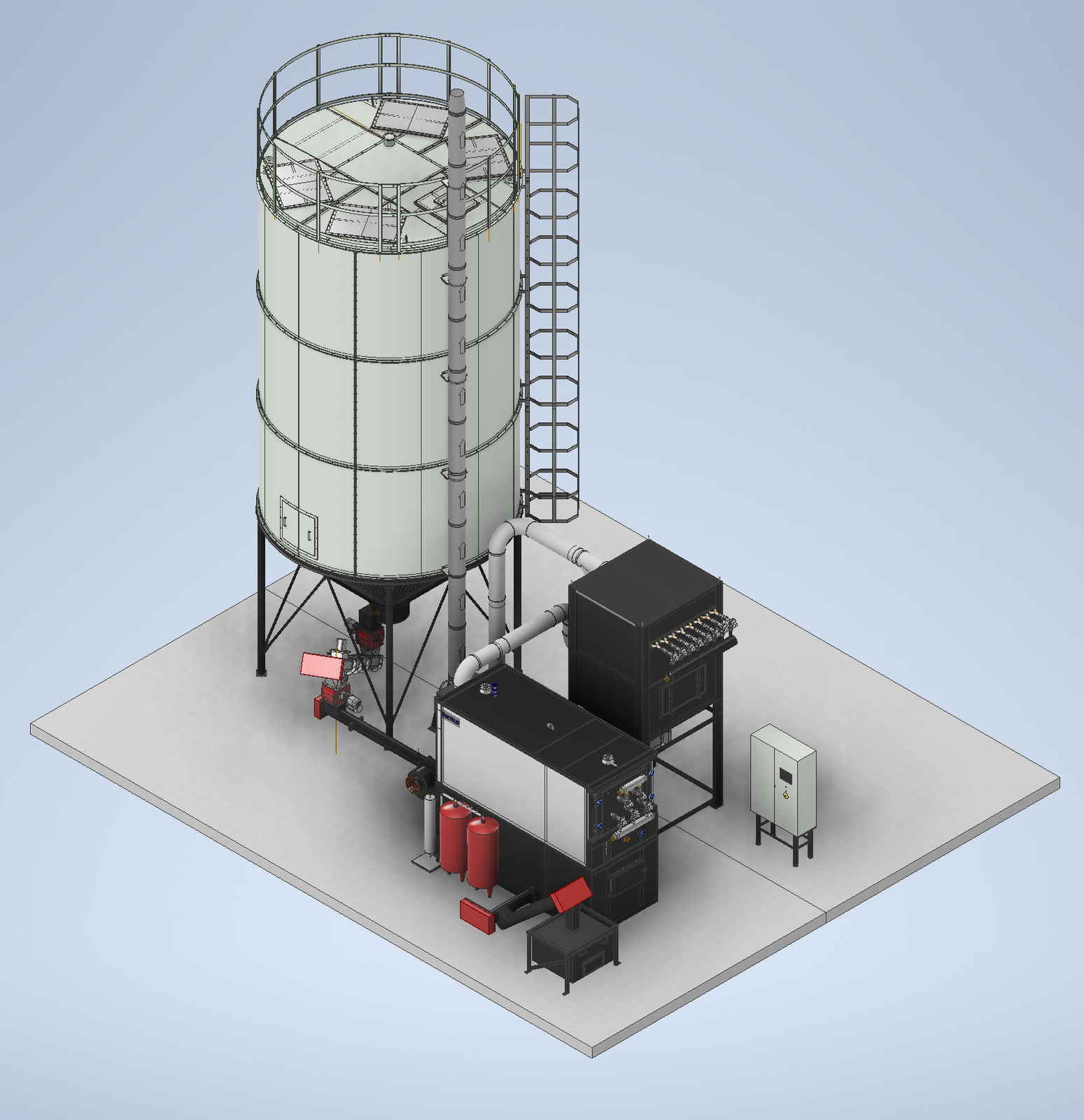

3D isometric render of a Ranheat MSU 600 600kW wood waste boiler with multi-cyclone dust extraction and a tall conical fuel silo for a kitchen manufacturer — Isometric layout of a Ranheat MSU 600 biomass installation for a kitchen manufacturer: horizontal black boiler unit with a multi-cyclone bank and control panel in the foreground, fed from a tall conical wood-waste silo behind.

Summary

MSU 600 industrial biomass boiler — 600 kW for LTHW heating and wood-waste disposal.

Overview

General assembly render of the MSU 600 energy centre: boiler with ceramic filter on a steel base plinth, fed from a 4m 2-ring C50 conical silo via screw conveyor and rotary valve.

Best For

Joinery and panel-processing workshops
Industrial wood-waste disposal with heat recovery

Fuel And Combustion Notes

Compatible with wood, mdf, chipboard, shavings, offcuts. [TBD: combustion/grate detail]
